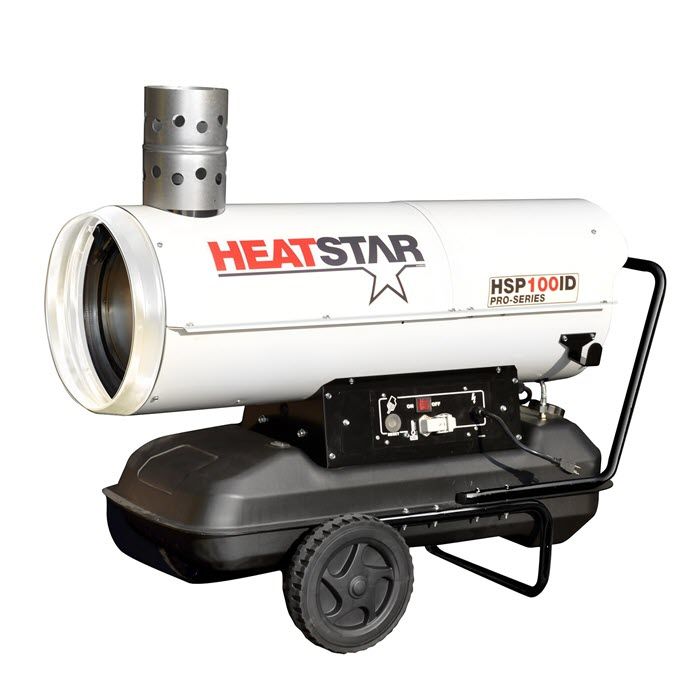

122,000 BTU Indirect Fired Heater - Series Page
Model: HSP100ID
The HSP100ID Indirect Fired Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.
| Item # | Product Name |
|---|---|
| F105110 | HSP100ID: Indirect Fired Construction Heater |
| F105106 | HSP Pro-Series: Digital Thermostat |
| F105108 | HSP Pro-Series: Remote Analog Thermostat |
| F105111 | HSP Pro-Series: Single Duct Adapter (14in) |
| F105112 | HSP Pro-Series: Air Recycle Kit (12in) |
| F105117 | HSP Pro-Series: Dual Duct Adapter |
| F150040 | 12in Flexible Heat Duct |
| F150043 | 14in Flexible Heat Duct |
| 50726 | 6in Pipe for HSP100-500ID |
| 50727 | 6in high wind cap for HSP100-500ID |
| F105104 | 12 inch Single Duct Adapter for HSP100ID |
Heatstar PRO-SERIES 122,000 BTU/HR Indirect Fired Heater. The HSP100ID (F105110) is an ideal heating solution when paired with 25' of 14" duct and a remote thermostat. This indirect fired heater is an ideal solution for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the heater outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way it is hard to beat the comfort and safety of indirect heat.
- Heat exchanger to keep exhaust gas and heated air separate
- 17 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 167 |
|---|---|
| Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
| Tank Capacity (Gal) | 17 |
| Ignition | Continuous |
| Electrical Rating | 120v, 60 HZ, 7.5 Amp |
| Air Volume (CFM) | 1060 |
| Heated Fuel Filter | Standard |
| Heated Nozzle | No |
| Clearance to Combustibles: Horizontal | 6ft |
| Adapter | F105104 Single (12") / F105111 Single (14") / F105117 Dual |
| Recirculating Ducting | Optional |
| Duct Length Max | 25ft |
| Duct Diameter | 12in or 14in |
| Multiple Ducting Optional | Optional |
| Wheel Type | Solid Rubber |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Item Length (in) | 48.62 |
| Item Width (in) | 22.63 |
| Item Height (in) | 39.37 |
| Item Weight (lb) | 167 |
| Warranty | 1 Year Limited |
| Model | HSP100ID |
