150,000 BTU ERXL Single Stage Series

  • 150,000 BTU ERXL Single Stage Series

150,000 BTU ERXL Single Stage Series

Item #:ERXL150_Single_Series Model #: ERXL150-N / ERXL150-LP
Item # Product Name

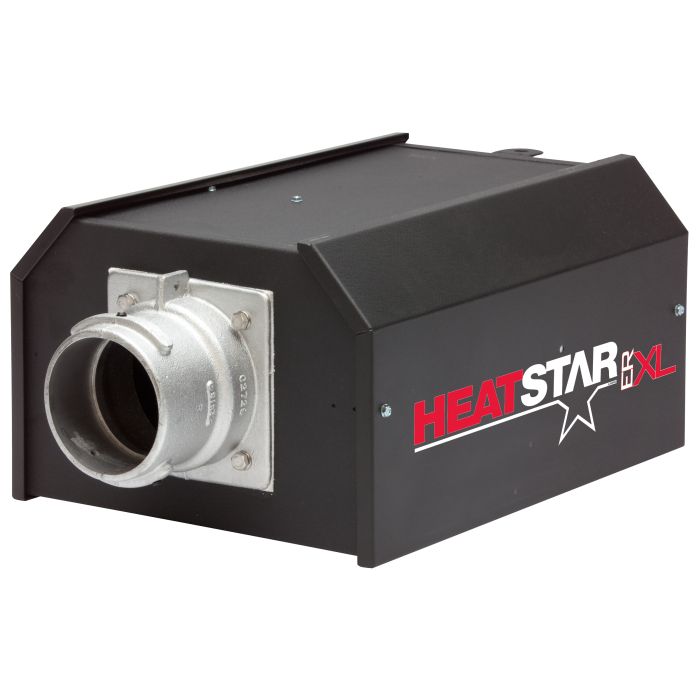

F102658XL 150,000 BTU Single Stage Burner Box Control XL-150N
F102659XL 150,000 BTU Single Stage Burner Box Control XL-150LP
F106407XL Tube Set - 125,000-175,000 BTU 50ft ERXL
F106403XL Tube Set - 150,000-175,000 BTU 60ft ERXL
00438 Side Reflex Extension Shield Kit
10371 24 Volt Thermostat
10392 120V Light Duty Thermostat
11740 Conversion Kit 150,000 BTU ER2 and ERXL LP to NG
11741 Conversion Kit 150,000 BTU ER2 and ERXL NG to LP
14585P Chrome Tube Hangers Plated
17370 Hanging Chain Kit for Tube Heaters
F102848 Category I 4in Vertical Vent Kit
F102860 Category III 4in Stainless Steel Horizontal Vent Kit
F106414 180 Degree U Tube
F106415 90 Degree Elbow Tube
F111754 ERXL Installation Kit for 50ft Unit
F111755 ERXL Installation Kit for 60ft Unit



Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102658XL) or propane (F102659XL), 10 ft (F106407XL) or 60 ft (F106403XL) tube set sold separately.
  • 10 Year Limited Warranty
  • 16-Gauge Aluminized Tubing
  • Outside or Inside Air for Combustion
  • Sealed Burner Control Box
  • Full Cover Polished Aluminum Reflector
  • Installs easily as Straight or U-Tube Configuration
  • Category I Vertical Venting
  • Category III Horizontal Venting

product details

Additional Information

BTU per Hour 150000
Electrical Rating 120V
Electrical Connection Pigtail Leads in Junction Box
Gas Inlet Connection 1/2in ID FPT
Mounting Height Range 15ft - 25ft
Clearance to Combustibles: Horizontal Above 6in; Below 87in; Sides 36in
Clearance to Combustibles: Vertical
Venting: Length Min/Max 25ft
Venting: Exhaust 25ft
Venting: Air Intake 25ft
Thermostat Optional Optional
Fuel Type Natural Gas or Propane
Ignition Hot Surface
Weight (Lbs) 1
Warranty 10 Year Limited
Certification CSA
Model ERXL150-N / ERXL150-LP

Parts and Manuals

Product Downloads

This product does not have schematics at this time.
