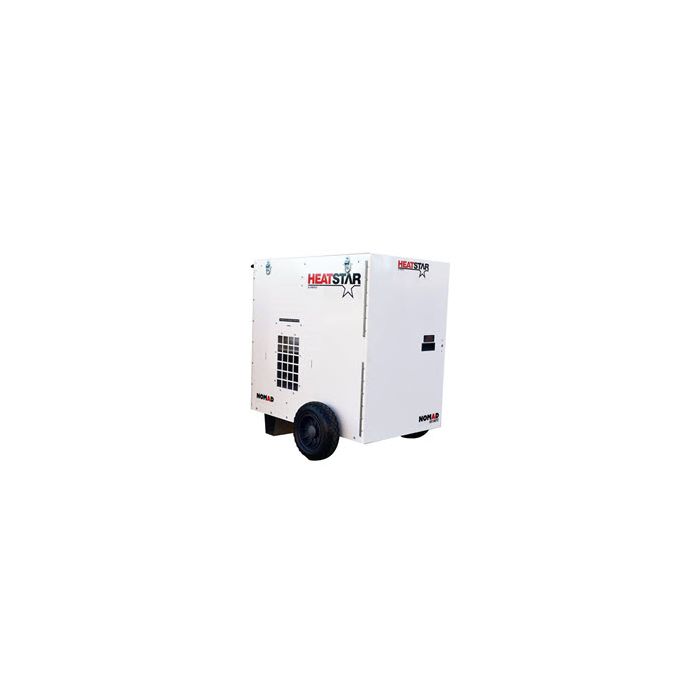

190,000 BTU NOMAD Dual Fuel Series
Model: HS190TC
NOMAD Construction and Tent Heater (F109110), with thermostat and 20ft cord, 15ft hose and regulator
| Item # | Product Name |
|---|---|
| F109110 | 190,000 BTU NOMAD Dual Fuel Construction and Tent Industrial Heater |
| F109119 | Painted Steel Storage Box for HS190TC or HS250TC |
| F109115 | Diffuser kit for HS190 or HS250TC |
| F109116 | Adapter ring for HS190 or HS250TC |
| F109117 | Short duct for HS190 or HS250TC |
| F109118 | Long duct for HS190 or HS250TC |
NOMAD heaters are ideal for enclosed construction site spaces, temporary structures or tents. These are highly fuel efficient, portable, cost effective heaters able to be used with or without a duct or diffuser. Manage comfortable temperatures, shorter pre-heat times and fuel consumption using high or low settings.
- Multi-rate settings 190,000 BTU or 125,000 BTU
- Dual fuel at flip of switch NG or LP
- High CFM
- Easy high limit switch reset
- Flexible duct
- Diffuser system
- Steel storage box with lock hasp, optional
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 102 |
|---|---|
| Fuel Type | Natural Gas or Propane |
| Minimum LP Tank Size | 2 x 100lb |
| Minimum NG Line Size | 1/2in D |
| Electrical Rating | 115V / 5.5 amps |
| Air Volume (CFM) | 1600 |
| Gas Inlet Connection | 1/2in D |
| Gas Inlet Pressure Min | LP - 11in WC / NG - 7in WC |
| Gas Inlet Pressure Max | LP - 14in WC / NG - 14in WC |
| Clearance to Combustibles: Horizontal | Top 1ft ; Sides 1ft; Back 1ft; Outlet 6ft |
| Recirculating Ducting | Not Applicable |
| Duct Length Max | 10ft |
| Duct Diameter | 16in |
| Multiple Ducting Optional | Not Applicable |
| Wheel Type | Solid Rubber |
| Thermostat Optional | Included |
| Item Length (in) | 35.75 |
| Item Width (in) | 20.25 |
| Item Height (in) | 34.75 |
| Warranty | 1 Year Limited |
| Model | HS190TC |
Download Prop 65 Statement
