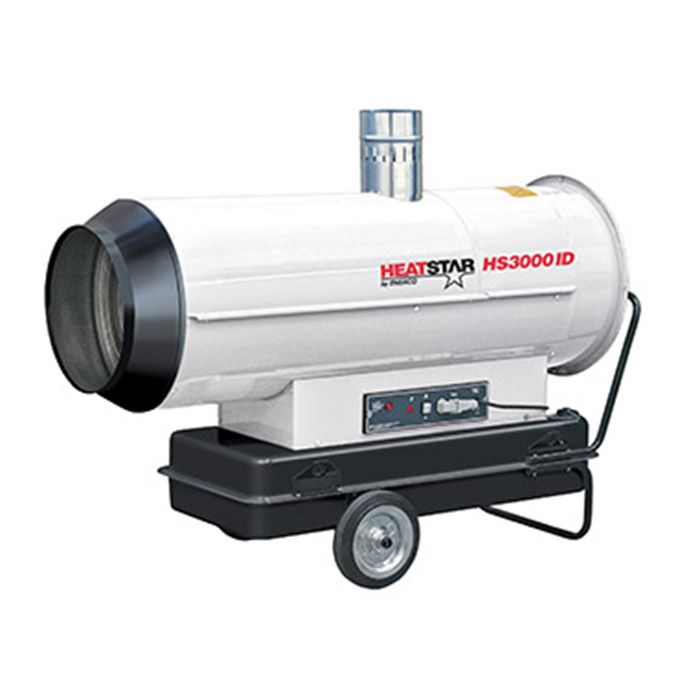

300,000 BTU Forced Air Indirect Fired Industrial Heater
Model: HS3000ID
Heatstar Indirect Heaters utilize extremely powerful fans that pull massive amounts of cold air across a 4 loop heat exchanger delivering powerful clean and reliable indirect heat where you need it. This 300,000 BTU oil fired heater can be ducted up to 100ft or for maxium effciency or can be installed in the heater space and duct the exhaust outside (Chimney kits available) therefore reheating the warm air and resulting in less heat loss over time. Unit is equipped with heavy-duty 10in pneumatic wheels and internal onboard diagnostics with a connection for an external remote thermostat. With Heatstar Indirect Heaters now you can heat the big jobs with more power, more BTUs, and more versatility.
Item # | Product Name | |
---|---|---|
No options of this product are available. |
Heatstar Indirect Heaters utilize extremely powerful fans that pull massive amounts of cold air across a 4 loop heat exchanger delivering powerful clean and reliable indirect heat where you need it. This 300,000 BTU oil fired heater can be ducted up to 100ft or for maxium effciency or can be installed in the heater space and duct the exhaust outside (Chimney kits available) therefore reheating the warm air and resulting in less heat loss over time. Unit is equipped with heavy-duty 10in pneumatic wheels and internal onboard diagnostics with a connection for an external remote thermostat. With Heatstar Indirect Heaters now you can heat the big jobs with more power, more BTUs, and more versatility.
- Heat exchanger to keep exhaust gas and heated air separate
- Large capacity diesel fuel tanks provide hours of continuous operation
- Powerful fans ensure high static pressure allowing heater placement outdoors with clean heated air directed indoors
- Long life stainless steal combustion chamber
- Two stage pump for more reliable starts in sub-zero temperatures
- Electronic Flame Control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- New heavy duty duct adapter available
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Weight | 308 |
---|---|
Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
Ignition | Continuous |
Electrical Rating | 120v, 60Hz |
Air Volume (CFM) | 2500 |
Heated Fuel Filter | Yes |
Heated Nozzle | No |
Clearance to Combustibles: Horizontal | 6ft |
Recirculating Ducting | Optional |
Duct Length Max | 25ft |
Duct Diameter | 16in |
Multiple Ducting Optional | Dual Ducting 2-12in |
Wheel Type | Solid Rubber |
Thermostat Optional | Optional remote thermostat |
Warranty | 1 Year Limited |
Model | HS3000ID |
