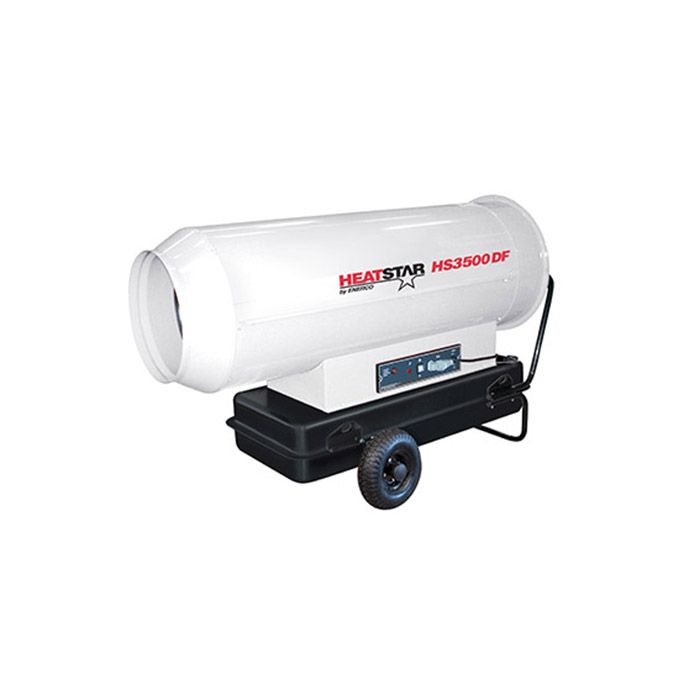

360,000 BTU Forced Air Direct Fired Industrial Heater

  • 360,000 BTU Forced Air Direct Fired Industrial Heater

360,000 BTU Forced Air Direct Fired Industrial Heater

Item #:F151089 Model #: HS3500DF
The HS3500DF is just the right size for the job if the job is huge. Delivering a whopping 360,000 BTUs at 1800 CFM this heater can handle almost any jobsite. Included on this unit is an external hook-up for a remote thermostat, onboard diagnostics and all of the other safety bells and whistles you have come to expect from the product at Heatstar. With a gigantic 27 gallon tank you can run this unit for 9 hours on a single fill up. This HS3500DF is always on the job.

Download Manuals/Schematics/Specs

1Select production year
2Select type
3

description

Details

The HS3500DF is just the right size for the job if the job is huge. Delivering a whopping 360,000 BTUs at 1800 CFM this heater can handle almost any jobsite. Included on this unit is an external hook-up for a remote thermostat, onboard diagnostics and all of the other safety bells and whistles you have come to expect from the product at Heatstar. With a gigantic 27 gallon tank you can run this unit for 9 hours on a single fill up. This HS3500DF is always on the job.
  • Built in oil burner
  • Electronic flame control system
  • Safety overheat thermostat and pressure switch
  • Outlet for remote thermostat
  • Stainless steel heat exchanger
  • Double skinned combustion chamber for thermo-acoustic insulation and safe low surface temperature
  • Preheated oil filter
  • Pre-purge and post-ventilation cycles
  • Twist lock fuel cap with cable
  • Operates on #1, #2 Diesel, Kerosene, JP-8 or Jet fuel
  • CSA certified

product details

Additional Information

Weight (Lbs) 150
BTU per Hour 360000
Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel
Tank Capacity (Gal)
Ignition Continuous
Electrical Rating 120v, 60Hz
Air Volume (CFM) 1795
Heated Fuel Filter Yes
Heated Nozzle No
Clearance to Combustibles: Horizontal 6ft
Wheel Type Solid Rubber
Thermostat Optional Optional remote thermostat
Item Length (in)
Item Width (in)
Item Height (in)
Item Weight (lb)
Warranty 1 Year Limited
Model HS3500DF
