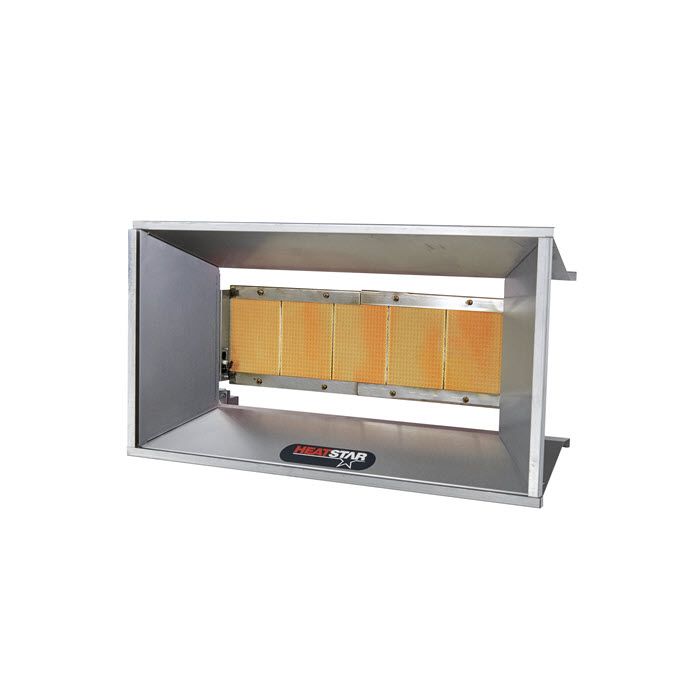

40,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater

  • 40,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater

40,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater

Item #:F140629 Model #: HS4040SPNG
4000 Series High Intensity Overhead Radiant Heater, spark ingition, for natural gas

description

Details

4000 Series Heaters arrive set up to operate at 40,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 30,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transfomer. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

product details

Additional Information

Weight (Lbs) 25
BTU per Hour 40000
Fuel Type Natural Gas
Ignition Electronic
Electrical Rating 120V / 60Hz
Electrical Connection Transformer
Transformer Included Yes
Gas Inlet Connection 1/2in ID FPT
Gas Inlet Pressure Min 6.8in WC
Gas Inlet Pressure Max 14in WC
Mounting Height Range 10ft - 12ft
Clearance to Combustibles: Horizontal Top 34in; Side 30in; Back 30in; Below 68in
Venting Required Not Required
Thermostat Optional Sold Separately
Item Length (in)
Item Width (in)
Item Height (in)
Item Weight (lb)
Warranty: Gas Control 1 Year Limited
Warranty: Burner 10 Year Limited Pro-Rated
Model HS4040SPNG

Parts and Manuals

This product does not have schematics at this time.
