80,000 BTU ERXL Single Stage Series

  • 80,000 BTU ERXL Single Stage Series

80,000 BTU ERXL Single Stage Series

Item #:ERXL80_Single_Series Model #: ERXL80-N / ERXL80-LP
Item # Product Name

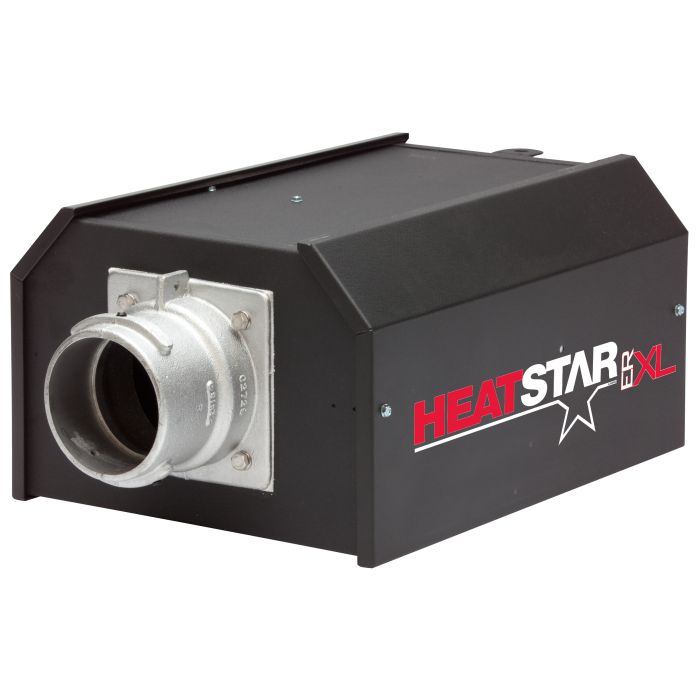

F102652XL 80,000 BTU Single Stage Burner Box Control XL-80N
F102653XL 80,000 BTU Single Stage Burner Box Control XL-80LP
F106404XL Tube Set - 60,000-80,000 BTU 20ft ERXL
F106405XL Tube Set - 80,000 BTU 30ft ERXL
00438 Side Reflex Extension Shield Kit
10371 24 Volt Thermostat
10392 120V Light Duty Thermostat
11734 ERXL Conversion Kit 8000 - LP To NG
11735 Conversion Kit 80,000 ERXL NG to LP
14585P Chrome Tube Hangers Plated
17370 Hanging Chain Kit for Tube Heaters
F102848 Category I 4in Vertical Vent Kit
F102860 Category III 4in Stainless Steel Horizontal Vent Kit
F106414 180 Degree U Tube
F106415 90 Degree Elbow Tube
F111751 ERXL Installation Kit for 20ft Unit
F111752 ERXL Installation Kit for 30ft Unit



Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102652XL) or propane (F102653XL), 20 ft tube set (F106404XL) or 30 ft (F106405XL) sold separately.
  • 10 Year Limited Warranty
  • 16-Gauge Aluminized Tubing
  • Outside or Inside Air for Combustion
  • Sealed Burner Control Box
  • Full Cover Polished Aluminum Reflector
  • Installs easily as Straight or U-Tube Configuration
  • Category I Vertical Venting
  • Category III Horizontal Venting

product details

Additional Information

BTU per Hour F102652XL
Electrical Rating 120V
Electrical Connection Pigtail Leads in Junction Box
Gas Inlet Connection 1/2in ID FPT
Mounting Height Range 12ft - 15ft
Clearance to Combustibles: Horizontal Above 6in; Below 55in; Sides 36in
Clearance to Combustibles: Vertical
Venting: Length Min/Max 25ft
Venting: Exhaust 25ft
Venting: Air Intake 25ft
Thermostat Optional Optional
Fuel Type Natural Gas or Propane
Ignition Hot Surface
Weight (Lbs)
Warranty 10 Year Limited
Certification CSA
Model ERXL80-N / ERXL80-LP
