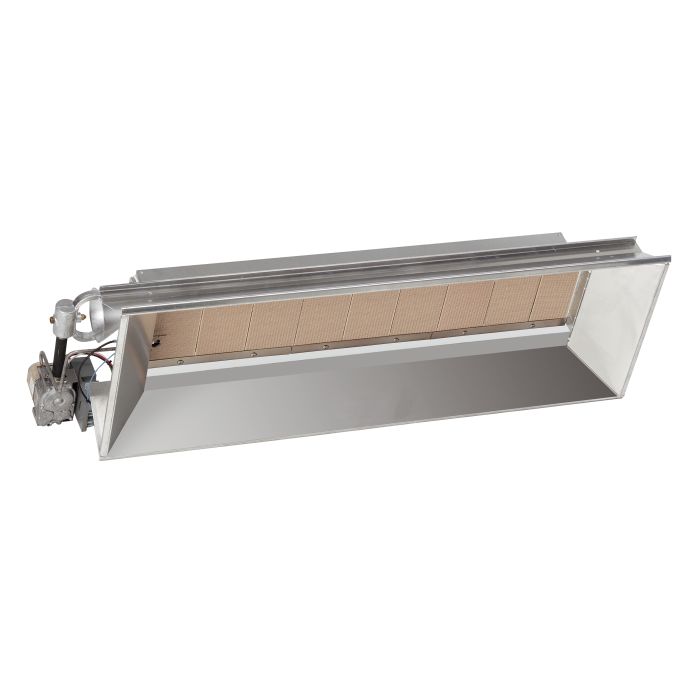

High Intensity Overhead Radiant Power Ignition 8000 Series

Model: HS8060PPNG / HS8060PPLP
8000 Series High Intensity Overhead Radiant Heater, power pile ignition for natural gas (F180626) or liquid propane (F180727)
Grouped product items
Item #Product Name
F18062660,000 BTU Natural Gas High Intensity Radiant Power Pile Industrial Heater
F18072760,000 BTU Propane High Intensity Radiant Power Pile Industrial Heater
F1044458000 Series Decorative Grid Kit
F1044468000 Series Retro-Fit Decorative Grid Kit
F114581Bracket Hanging Set
17374Hanging Chain Kit for Overhead High Intensity Heaters
1037124 Volt Thermostat
8000 Series Heaters arrive set up to operate at 60,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 50,000 or 70,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by natural gas. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Weight34
Fuel TypeNatural Gas or Propane
IgnitionManual
Electrical RatingNot Applicable
Electrical ConnectionNot Applicable
Transformer IncludedNot Applicable
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure MinNatural Gas - 7in WC / Propane - 11in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range13ft - 15ft
Clearance to Combustibles: HorizontalTop 40in; Side 30in; Back 30in; Below 118in
Venting RequiredNot Required
Thermostat OptionalN/A
Item Length (in)48.25
Item Width (in)20.25
Item Height (in)13.5
Item Weight (lb)36.15
Warranty: Gas Control1 Year Limited
Warranty: Burner10 Year Limited Pro-Rated
ModelHS8060PPNG / HS8060PPLP

Download Prop 65 Statement

Click on the links below to download Specifier documentation and submit here. Please check the download size before downloading on your mobile.

SPECIFIER DOCUMENTS
