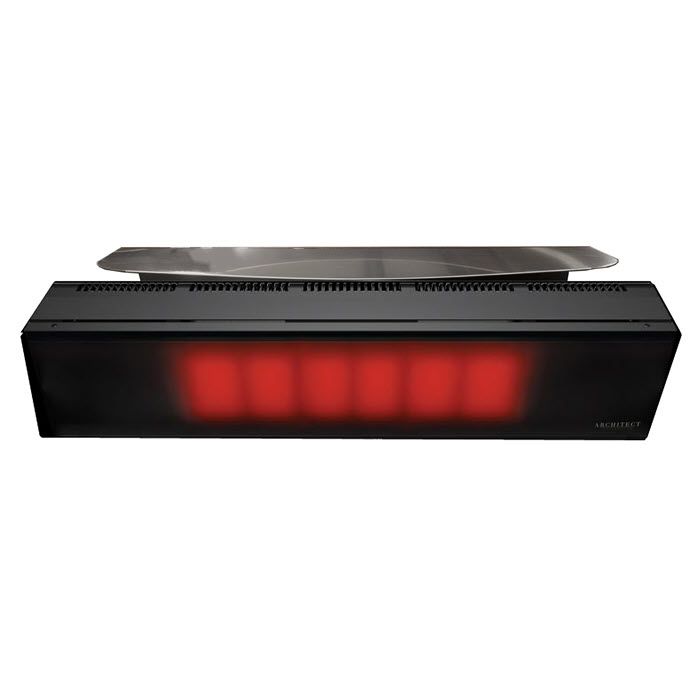

Architect Collection: 37,000 BTU Restaurant/Patio Radiant Glass Front Heater

SKU
F140200
Model: HSRP37GL
NEW in Fall 2020, the HeatStar Architect Collection adds refinement to our Real Tough Heat. Dual fuel and either with a glass or a metal grill front, these overhead heaters are designed to withstand outdoor conditions and provide a higher end aesthetic. Allow your guests to enjoy an extended patio season with this efficient and cost effective option.
  • 37,000 BTU per hour
  • Runs on propane or natural gas
  • Highly efficient, quiet radiant heat
  • Included pivot brackets offer directional control and coverage of heat
  • Included heat deflector allows for low clearance to ceiling (13-In)
  • Includes On/Off Remote
  • Compact minimal design
  • No air movement
  • Instant heat
  • Efficient use of fuel
  • Constructed of high quality materials
  • Spark ignition
  • Certified
Our Architect Collection offers glass front radiant high efficiency gas luminous heater that is designed and developed with the most modern and rational manufacturing systems. It is lightweight, compact, and easy to install. The ceramic glass presents an excellent resistance to thermal shock, increasing the radiant performance. The gas luminous heater stands out for reliability: the burner, protected between casing and glass, ensures greatest resistance to wind.

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Weight60
Fuel TypeNG or LP, dual fuel
Electrical Rating120V / 0.5 A / 60 Hz / Single Phase
Electrical Connection3-Prong Electrical Plug
Transformer IncludedYes
Gas Inlet Connection1/2in Female NPT
Gas Inlet Pressure Min8-in WC Natural Gas, 11-in WC Propane
Gas Inlet Pressure Max14-in WC
Clearance to Combustibles: HorizontalTop 13-in, Sides 16-in, Back 16-in, Below 48-in
Venting RequiredNo
Thermostat OptionalN/A
Item Length (in)10.5
Item Width (in)43.1
Item Height (in)10.0
Item Weight (lb)20.2
Warranty: Gas Control1 Year Limited
Warranty: Burner1 Year Limited
ModelHSRP37GL
