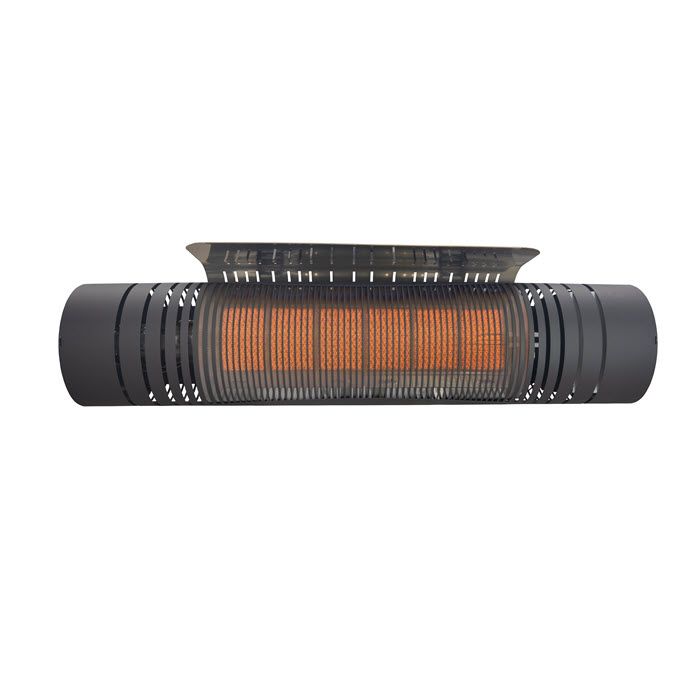

Architect Collection: 37,000 BTU Restaurant/Patio Radiant Metal Grill Fascia Heater
SKU
F140300
Model: HSRP37MT
NEW in Fall 2020, the HeatStar Architect Collection adds refinement to our Real Tough Heat. Dual fuel and either with a glass or a metal grill front, these overhead heaters are designed to withstand outdoor conditions and provide a higher end aesthetic. Allow your guests to enjoy an extended patio season with this efficient and cost effective option.
- 37,000 BTU per hour
- Runs on propane or natural gas
- Highly efficient, quiet radiant heat
- Included pivot brackets offer directional control and coverage of heat

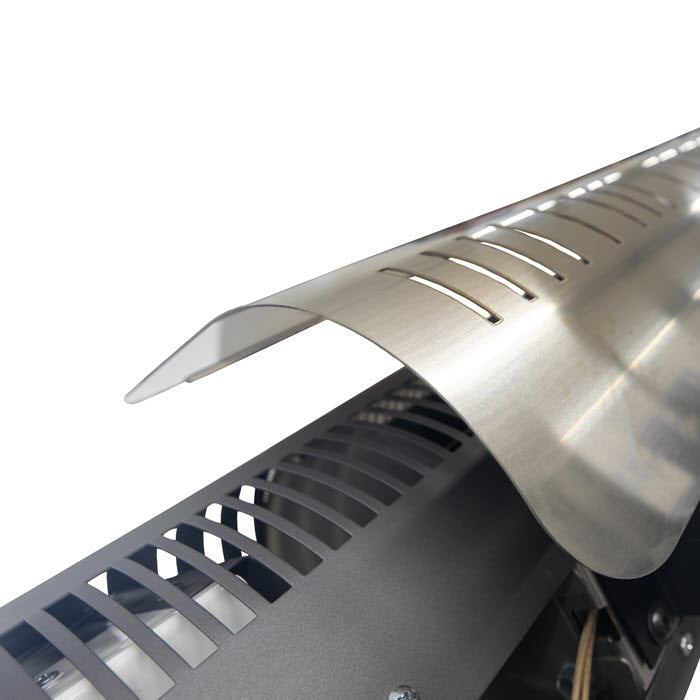

- Included heat deflector allows for low clearance to ceiling (13-In)
- Includes On/Off Remote
- No air movement
- Instant heat
- Efficient use of fuel
- Constructed of high quality materials
- Spark ignition
- Certified
Our Architect Collection offers a metal grill front radiant high efficiency gas luminous heater that is designed and developed with the most modern and rational manufacturing stems, it is lightweight, compact and easy to install. One of the main advantages of this heater, whose radiant body is composed of ceramic plates, is that it applies the physical principles of radiance to heat only desired zones, avoiding waste of energy.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 60 |
|---|---|
| Fuel Type | NG or LP, dual fuel |
| Electrical Rating | 120V / 0.5 A / 60 Hz / Single Phase |
| Electrical Connection | 3-Prong Electrical Plug |
| Transformer Included | Yes |
| Gas Inlet Connection | 1/2in Female NPT |
| Gas Inlet Pressure Min | 8-in WC Natural Gas, 11-in WC Propane |
| Gas Inlet Pressure Max | 14-in WC |
| Clearance to Combustibles: Horizontal | Top 13-in, Sides 16-in, Back 16-in, Below 48-in |
| Venting Required | No |
| Thermostat Optional | N/A |
| Item Length (in) | 10.5 |
| Item Width (in) | 43.1 |
| Item Height (in) | 10.0 |
| Item Weight (lb) | 20.2 |
| Warranty: Gas Control | 1 Year Limited |
| Warranty: Burner | 1 Year Limited |
| Model | HSRP37MT |
Download Prop 65 Statement
