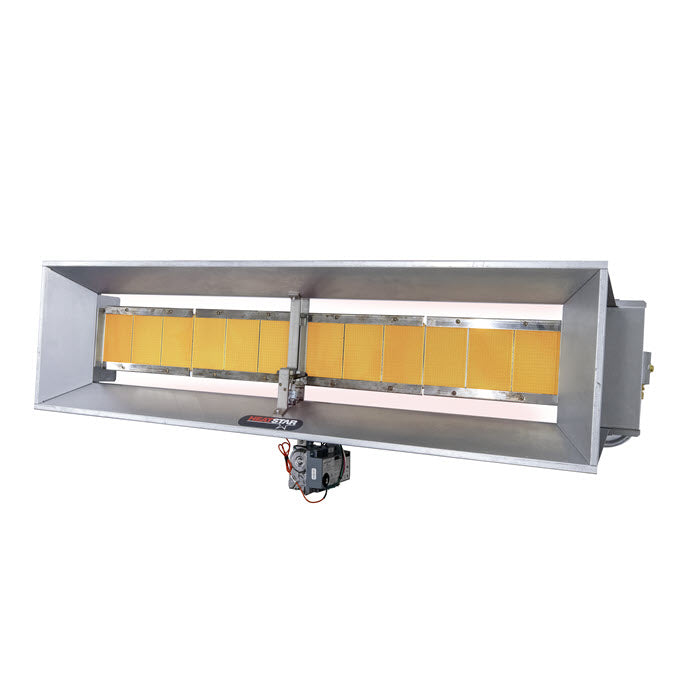

100,000 BTU Propane High Intensity Radiant Power Pile Industrial Heater

Model: HS9100SPPLP
SKU: F191927

9100S Series Heaters arrive set up to operate at 100,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 80,000 or 90,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by liquid propane. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Regular price $9,999.00
Regular price Sale price $9,999.00

General

ModelHS9100SPPLP

Electrical & Ignition

IgnitionManual
Electrical RatingNot Applicable
Transformer IncludedNot Applicable

Mounting & Installation

Mounting Height Range15ft - 28ft
Thermostat OptionalSold Separately

Warranty

Warranty Gas Control1 Year Limited
Warranty Burner10 Year Limited Pro-Rated

Fuel & Gas Supply

Fuel TypePropane
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min11in WC
Gas Inlet Pressure Max14in WC

Venting & Ducting

Venting RequiredNot Required
Clearance To Combustibles HTop 40in; Side 30in; Back 30in; Below 118in

Dimensions & Weight

Item Length In64
Item Width In26.5
Item Height In13.25
Item Weight Lb56
