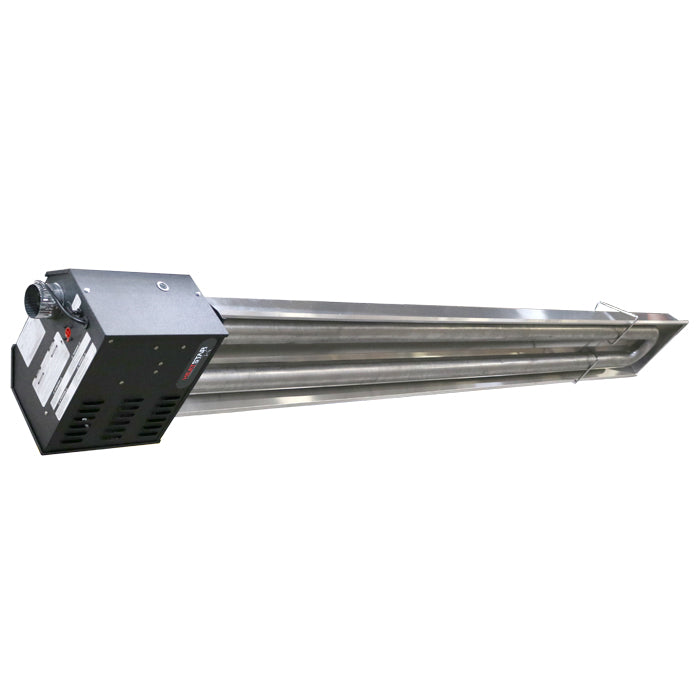

HS45GSP-LP Tube Heaters

Model: HS45GSP-LP
Parent SKU: HS45GSP_Series
Item SKU: F102855

The HS45GSP-LP Tube Heater is a source for efficient and effective low-intensity infrared radiant heat. At 45,000 BTU, it provides uniform heat distribution while operating quietly. The compact 3in aluminized steel U-tube design along with the polished deep-dish reflector is perfect for all garges, shops and patios. The burner and tube set come in one box. Optional accessories include a horizontal vent kit, a vertical vent kit, a 24v thermostat, a decorative grid kit, and an install kit.

Regular price $9,999.00
Regular price Sale price $9,999.00

General

ModelHS45GSP-LP

Electrical & Ignition

Electrical Rating120 vac, 60 Hz, single phase, 1 amp

Mounting & Installation

Mounting Height Range8-14ft
Thermostat Optional10371 - Analog

Warranty

Warranty3 Year Limited on Parts & Burner, 10 Year on Tube

Fuel & Gas Supply

Fuel TypePropane
Gas Inlet Connection1/2in Female NPT
Gas Inlet Pressure Min11.0in w.c. (LP)
Gas Inlet Pressure Max13.5in w.c. (LP)

Venting & Ducting

Clearance To Combustibles H6in above, 54in below, 24in burner side, 24in exhaust side, 6in reflector end, 24in burner end

Dimensions & Weight

Item Length In10ft 3in
Item Width In16.5in burner box / 16in refelector
Item Height In10.5in
