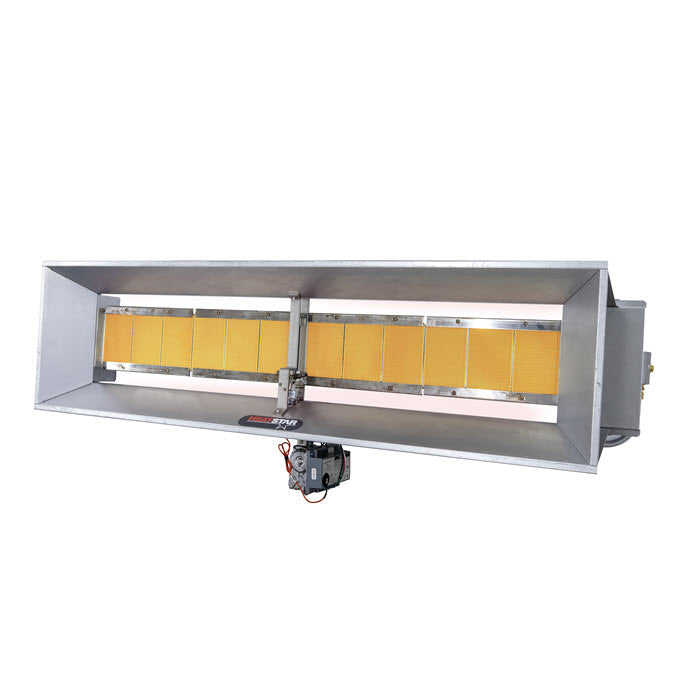

100,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater

9100S Series High Intensity Overhead Radiant Heater, spark ingition, for natural gas.

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Find a Distributor
Availability: Out of stock
SKU: F191830
Model:
HS9100SSPNG
Regular price $9,999.00
Regular price Sale price $9,999.00

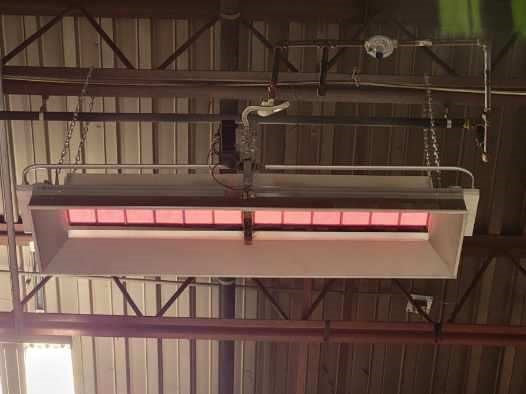

9100S Series Heaters arrive set up to operate at 100,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 80,000 or 90,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transfomer. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.

Weight 46
Fuel-type Natural Gas
Gas-inlet-connection 1/2in ID FPT
Gas-inlet-pressure-min 7in WC
Gas-inlet-pressure-max 14in WC
Ignition Electronic
Electrical-rating 120V / 60Hz
Clearance-to-combustibles-h Top 40in; Side 30in; Back 30in; Below 118in
Mounting-height-range 15ft - 28ft
Thermostat-optional Sold Separately
Venting-required Not Required
Transformer-included Yes
Item-length-in 64
Item-width-in 26.5
Item-height-in 13.25
Item-weight-lb 56
Warranty-gas-control 1 Year Limited
Warranty-burner 10 Year Limited Pro-Rated
Model HS9100SSPNG
