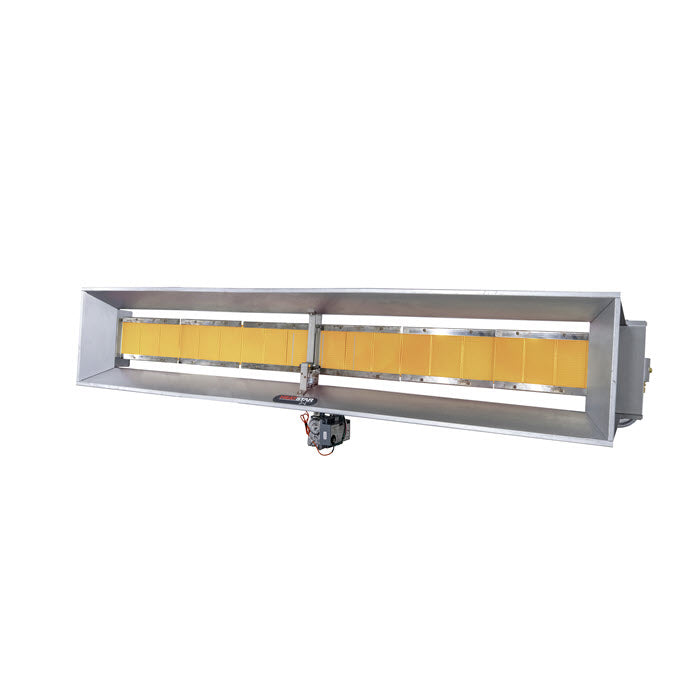

120,000 BTU Propane High Intensity Radiant Power Pile Industrial Heater

9120 Series High Intensity Overhead Radiant Heater, Power Pile ingition, for liquid propane

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Find a Distributor
Availability: Out of stock
SKU: F190727
Model:
HS9120PPLP
Regular price $9,999.00
Regular price Sale price $9,999.00

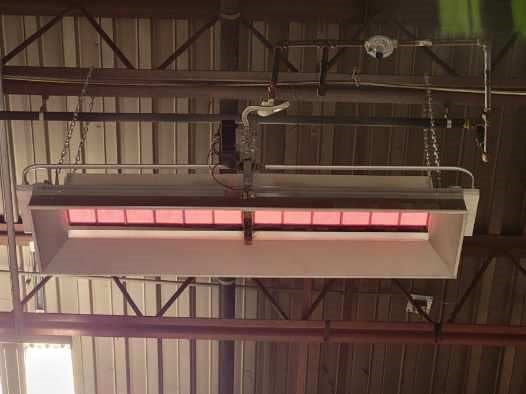

9120 Series Heaters arrive set up to operate at 120,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 100,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by liquid propane. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.

Weight 61
Fuel-type Propane
Gas-inlet-connection 1/2in ID FPT
Gas-inlet-pressure-min 11in WC
Gas-inlet-pressure-max 14in WC
Ignition Manual
Electrical-rating Not Applicable
Clearance-to-combustibles-h Top 46in; Side 46in; Back 46in; Below 114in
Mounting-height-range 18ft plus
Thermostat-optional Yes
Venting-required Not Required
Transformer-included Not Applicable
Item-length-in 85.5
Item-width-in 26.75
Item-height-in 13.13
Item-weight-lb 68
Warranty-gas-control 1 Year Limited
Warranty-burner 10 Year Limited Pro-Rated
Model HS9120PPLP
Download Prop 65 Statement
