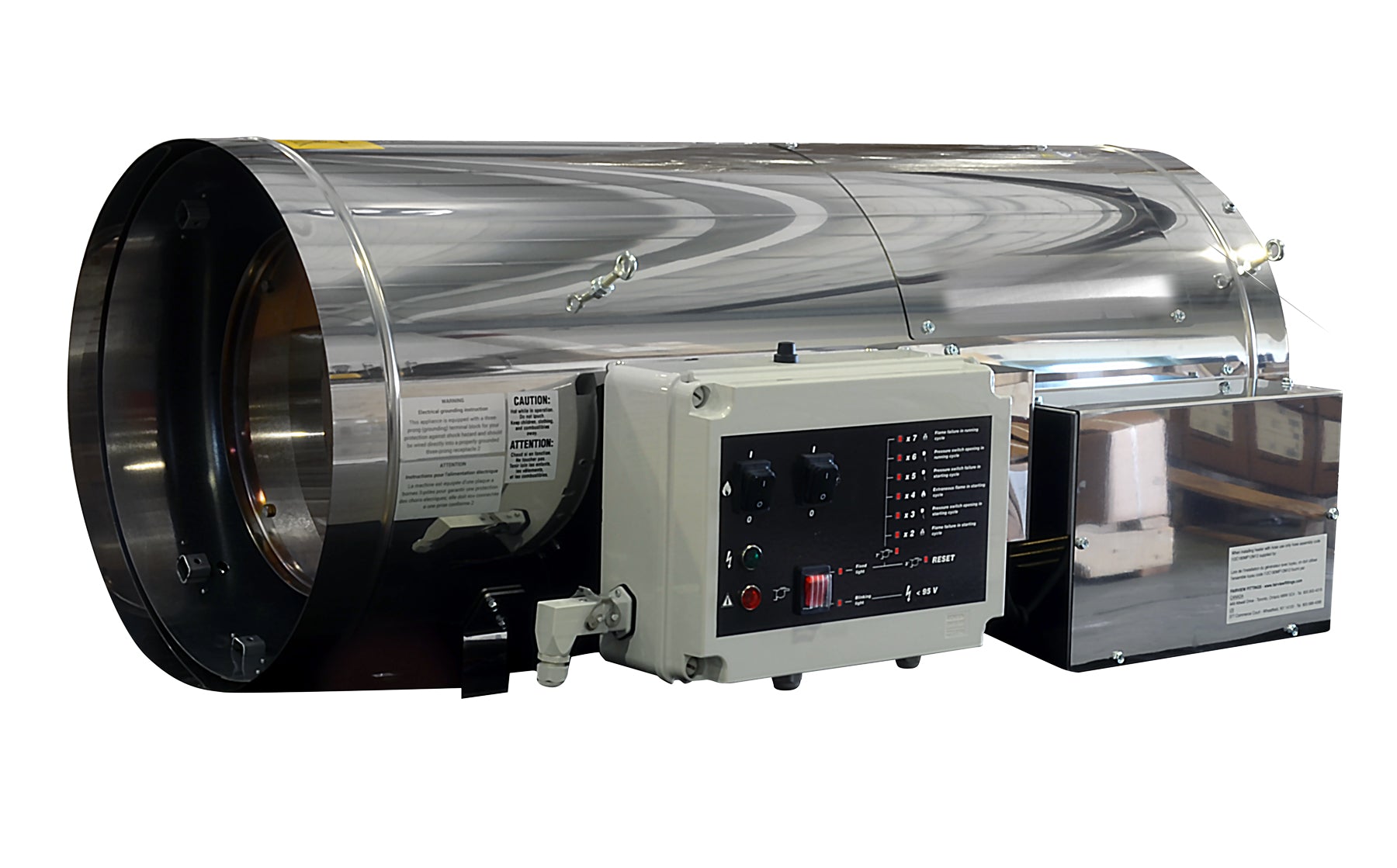

250,000 BTU Stainless Steel Direct Fired Forced Air CO2 Generator and Heater

Model: HS250AG
SKU: F130105

This 250,000 BTU heater is designed for greenhouse heating and or CO2 enrichment as well as horse stable heating. It is CSA and CE certified for use in greenhouses. It runs on Natural Gas or Liquid Propane and comes standard with a NG to LP conversion kit. The external housing, burner and combustion chamber are all made with high quality stainless steel to provide longevity. The combustion chamber is highly efficient resulting in a clean burn and ethylene content less than 0.6PPM. The HS250AG comes standard with automatic ignition and other safety features like an air flow switch, gas pressure switch, overheat monitoring, CO monitor and simple on-board diagnostics. It is designed to be suspended from the four stainless steel hanging bolts. HS250AG comes with a hook up for a local thermostat or can be set up to be managed by computer controlled thermostats. Other optional features include a delayed ignition relay so you can stagger start of multiple heaters, CO2 generator, moisture resistance starter and a remote failure alarm.

  • High grade stainless steel exterior & burner - durable
  • 99% efficient
  • Generates CO2
  • 150ft Throw
  • Automatic ignition, easy to operate
  • On-board diagnostics
  • Easy installation - no chimney or drain pipe necessary
  • CSA Greenhouse Certified
  • NG-LP gas two different nozzles
  • Built-in Safety Devices:
  • Low voltage shut-off, Protects motor, Prevents CO build-up
  • IP65 grade dust & water protection
  • Flame sensor safety device
  • Air pressure switch
  • High limit switch
  • Failure alarm

Regular price $3,600.00
Regular price Sale price $3,600.00

General

ModelHS250AG

Fuel & Gas Supply

Fuel TypeNatural Gas or Propane
Gas Inlet Connection3/4in
Gas Inlet Pressure Min8in WC NG-LP
Gas Inlet Pressure Max10in WC NG; 13in WC LP
Minimum NG Line Size3/4in

Venting & Ducting

Venting RequiredNo
Clearance To Combustibles HAbove 36in; Behind 36in; Sides 36in

Dimensions & Weight

Item Length In25.5
Item Width In46
Item Height In24
Item Weight Lb120

Performance

Air Volume CFM2,766 CFM

Electrical & Ignition

IgnitionElectronic
Electrical Rating110 vac

Mounting & Installation

Mounting Height Range8ft - 12ft
Thermostat OptionalNo

Warranty

Warranty1 Year Limited
