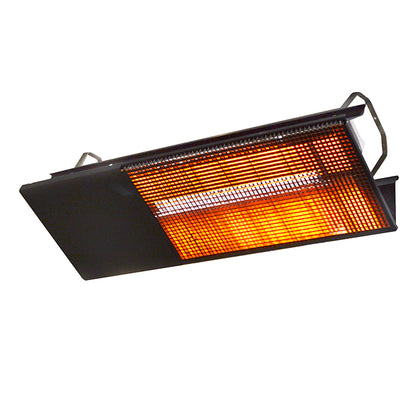

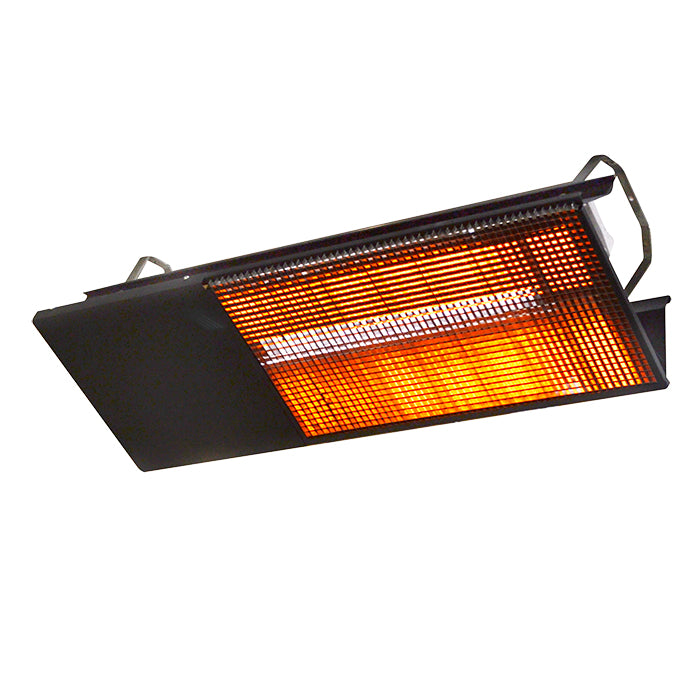

30,000 BTU Restaurant/Patio Natural Gas High Intensity Radiant Heater

Model: HSRR30SPNG
SKU: F140625

The 4000 Series High Intensity Overhead Restaurant/Patio heater comes fully assembled and painted a low gloss black. It is designed for use on patios, at restaurants and generally where overhead heating is needed in windy and cool conditions. Infrared heaters direct line of site radiant heat, like the sun's rays, to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. The decorative black color is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and operates fueled by natural gas. Mounting brackets for a 45° installation are included. It operates with 24V or 120V thermostats (sold separately.) It comes with a 3 year limited warranty on the burner assembly. If an aluminum colored unit is preferred, use the standard 4000 Series Heater and add the optional decorative kit (F104440).

  • Heatstar Restaurant / Patio High Intensity Heaters have a black, satin gloss painted body and reflectors
  • Decorative grate protects burners from damage and act as a wind guard
  • Additional burner orifice is available that enables the installer to increase or decrease the output of the heater (optional orifice #05443, sold separately)
  • Spark ignition heaters ship with 120V 24V /40VA transformers

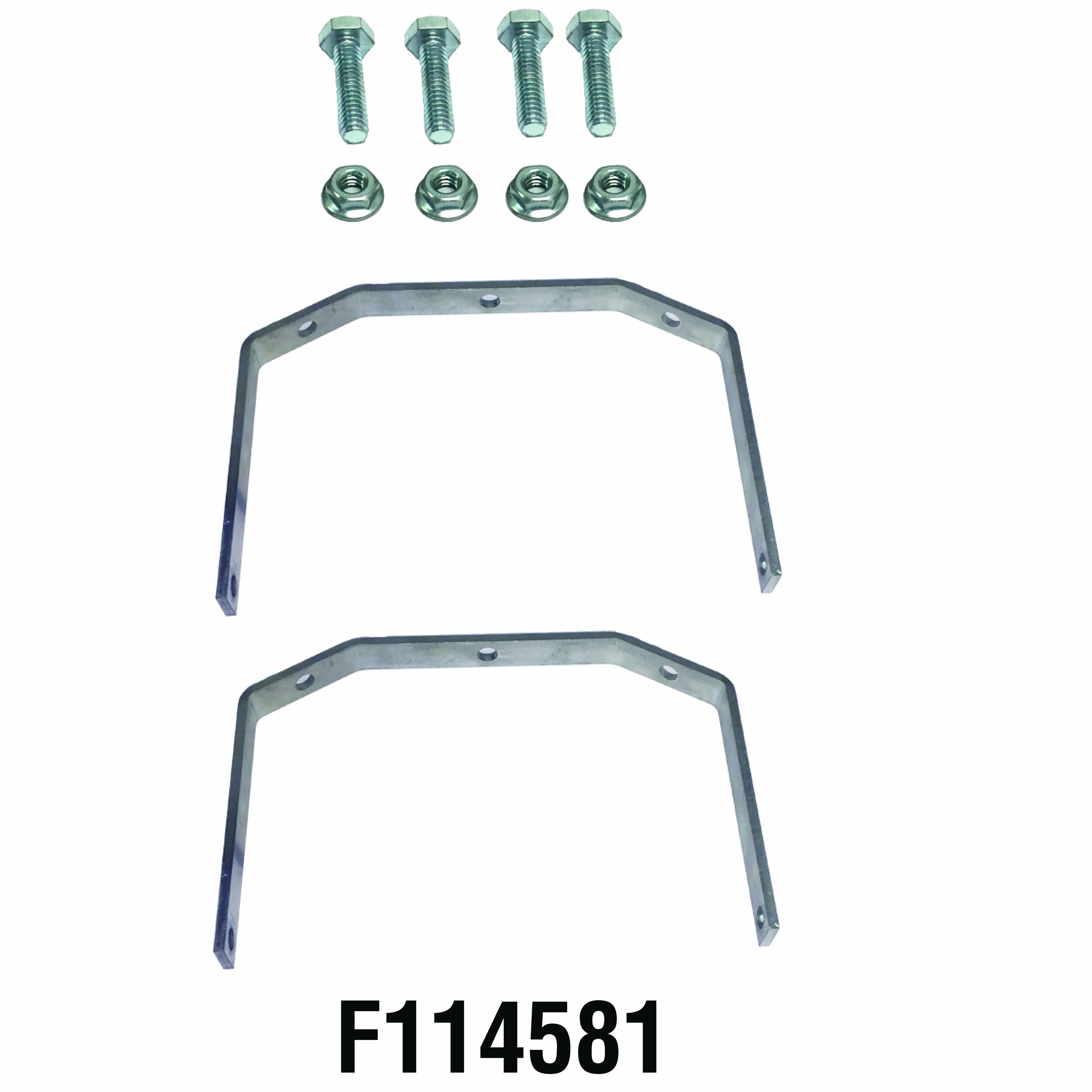

  • Mounts horizontal or at a 45 degree angle (brackets included)

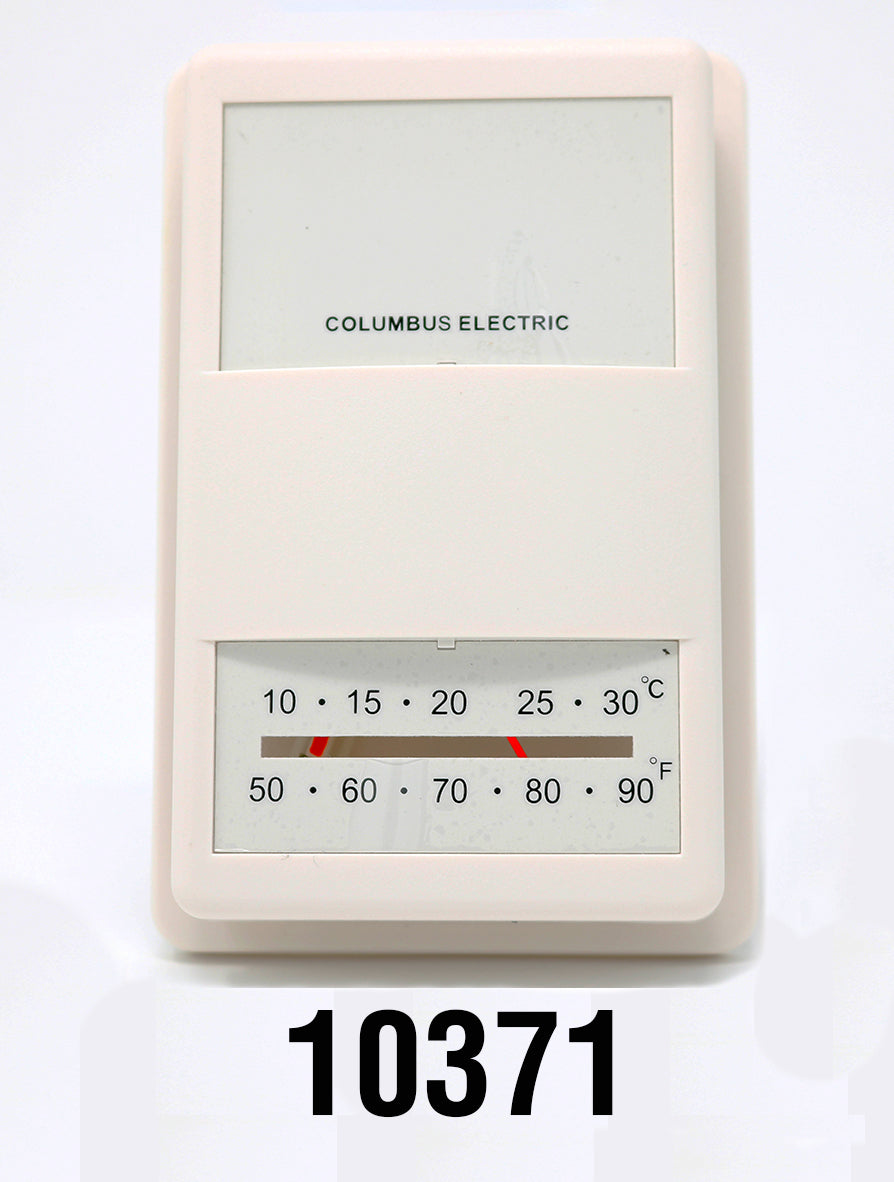

  • Operates with 24V or 120V thermostats (not included)
  • No direct venting required
  • Corrosion resistant materials are used throughout heaters construction

Regular price $9,999.00
Regular price Sale price $9,999.00

General

ModelHSRR30SPNG

Electrical & Ignition

IgnitionElectronic
Electrical Rating120V / 60Hz
Transformer IncludedYes

Mounting & Installation

Mounting Height Range10ft - 12ft
Thermostat OptionalSold Separately

Warranty

Warranty Gas Control1 Year Limited
Warranty Burner10 Year Limited Pro-Rated

Fuel & Gas Supply

Fuel TypeNatural Gas
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min6.6in WC
Gas Inlet Pressure Max11in WC

Venting & Ducting

Venting RequiredNot Required
Clearance To Combustibles HTop 30in; Side 30in; Back 30in; Below 54in

Dimensions & Weight

Item Length In48.25
Item Width In20.5
Item Height In13.75
Item Weight Lb40
