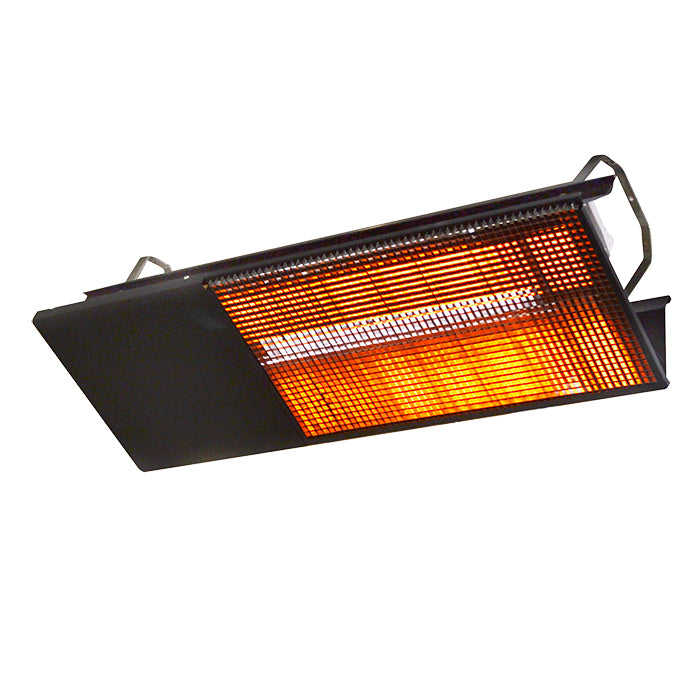

30,000 BTU Restaurant/Patio Propane High Intensity Radiant Heater

This black 4000 Series High Intensity Overhead heater is designed for out door restaurant or patio installations where comfortable heat is needed in breezy conditions. LP version.

  • Additional burner orifice is available that enables the installer to increase or decrease the output of the heater (optional orifice #05443, sold separately)
  • Spark ignition heaters ship with 120V 24V /40VA transformers

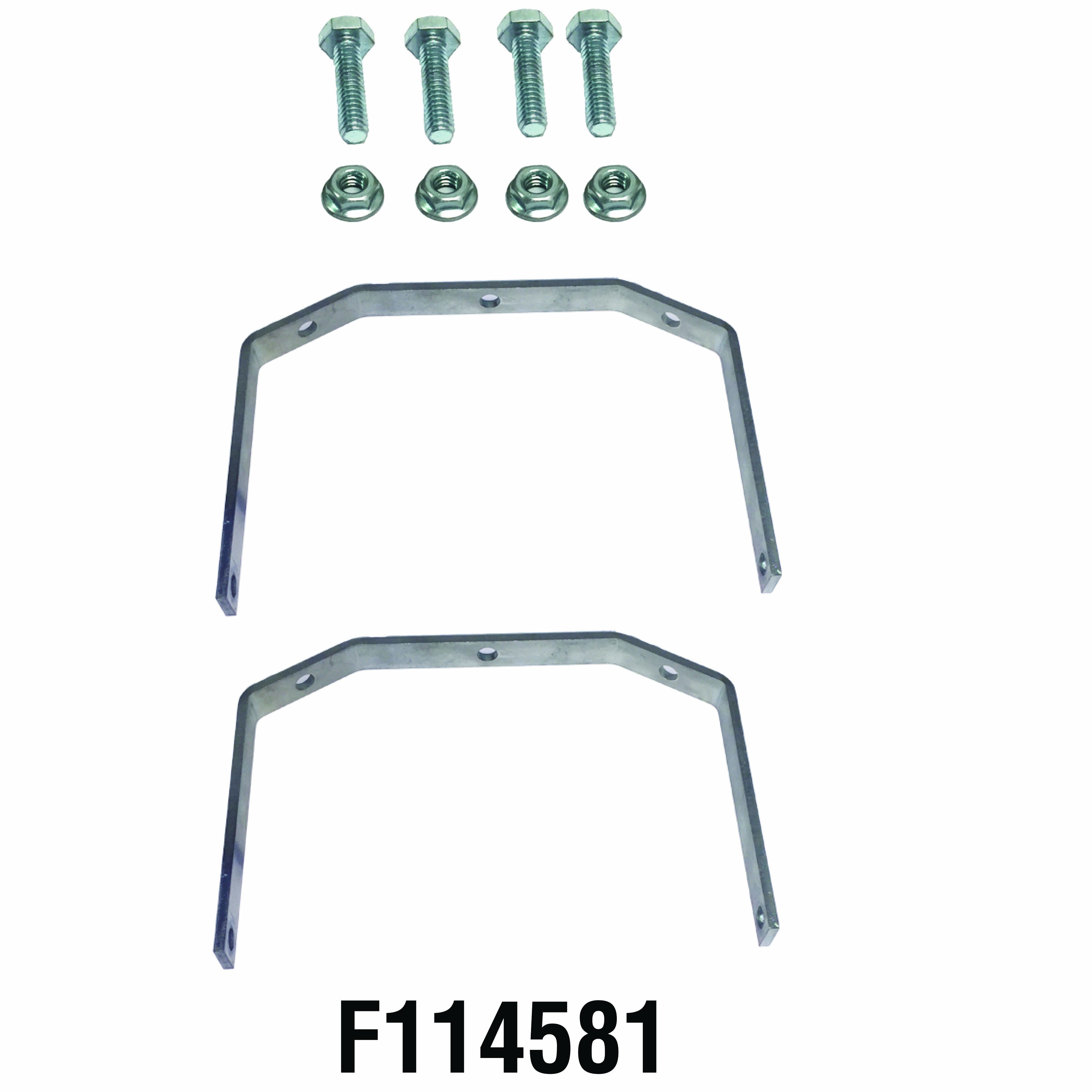

  • Mounts horizontal or at a 45 degree angle (brackets included)

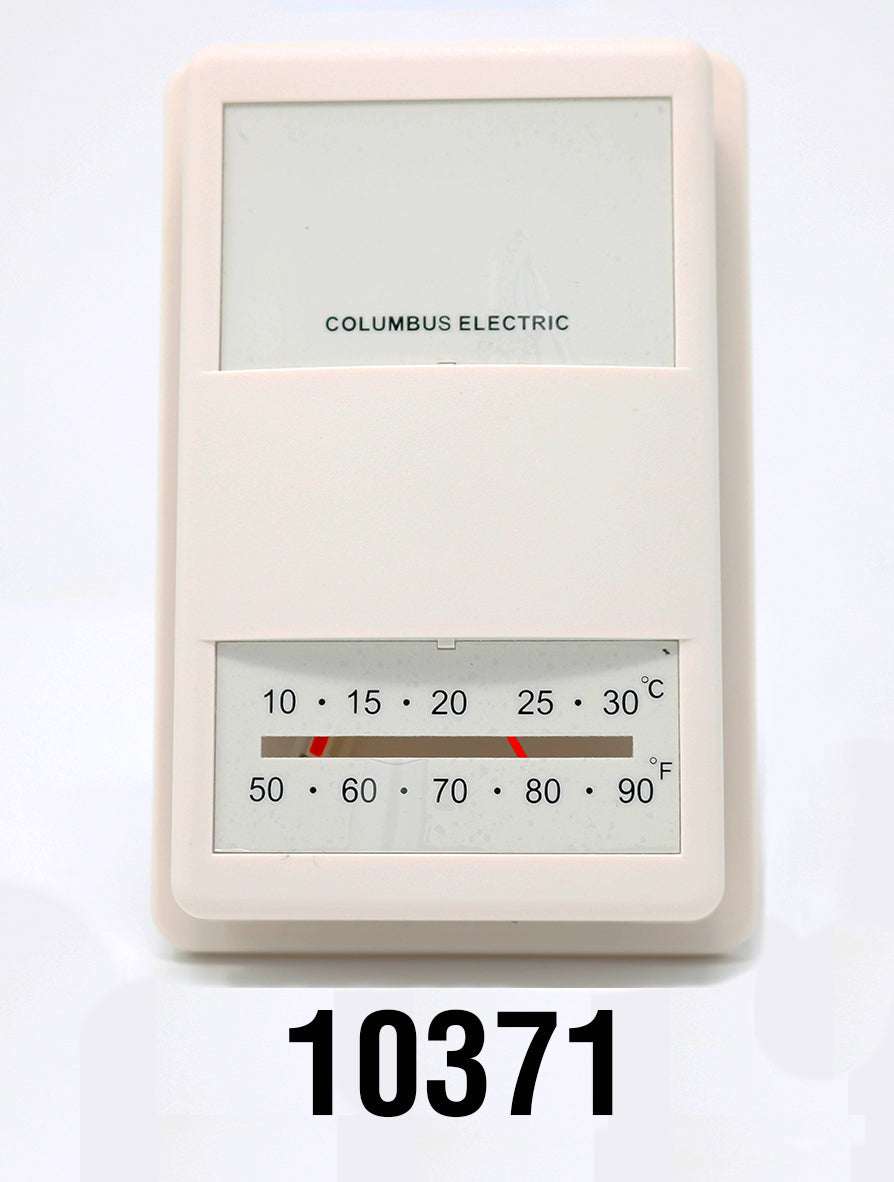

  • Operates with 24V or 120V thermostats (not included)
  • No direct venting required
  • Corrosion resistant materials are used throughout heaters construction

Find a Distributor
Availability: Out of stock
SKU: F140627
Model:
HSRR30SPLP
Regular price $9,999.00
Regular price Sale price $9,999.00

Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort.

Weight 27
Fuel-type Propane
Gas-inlet-connection 1/2in ID FPT
Gas-inlet-pressure-min 11in WC
Gas-inlet-pressure-max 14in WC
Ignition Electronic
Electrical-rating 120V / 60Hz
Clearance-to-combustibles-h Top 30in; Side 30in; Back 30in; Below 54in
Mounting-height-range 10ft - 12ft
Thermostat-optional Yes
Venting-required Not Required
Transformer-included Yes
Item-length-in 48.25
Item-width-in 20.5
Item-height-in 13.25
Item-weight-lb 40
Warranty-gas-control 1 Year Limited
Warranty-burner 10 Year Limited Pro-Rated
Model HSRR30SPLP
