Restaurant / Patio Overhead Radiant Series

This black 4000 Series High Intensity Overhead heater is designed for out door restaurant or patio installations where comfortable heat is needed in breezy conditions. Available in natural gas (F140625) or propane (F140627).

Find a Distributor
Availability: Out of stock
SKU: Restaurant_Patio_Series
Model:
HSRR30SPNG / HSRR30SPLP
Regular price $0.00
Regular price Sale price $0.00

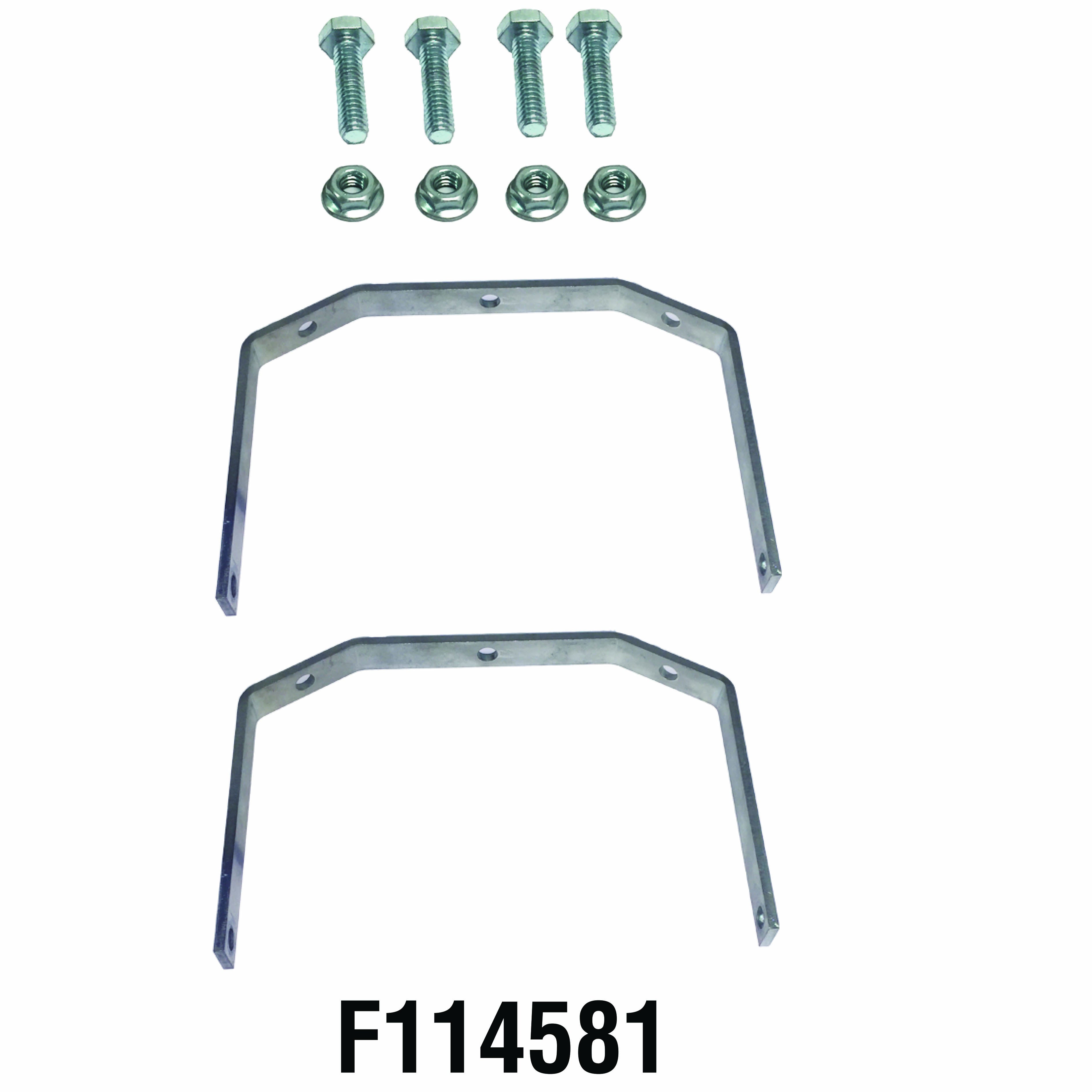

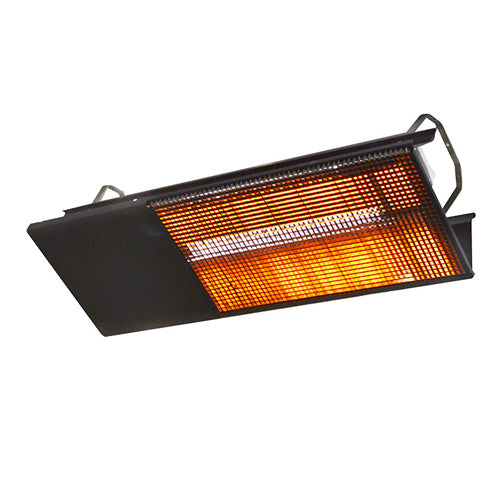

The 4000 Series High Intensity Overhead Restaurant/Patio heater comes fully assembled and painted a low gloss black. It is designed for use on patios, at restaurants and generally where overhead heating is needed in windy and cool conditions. Infrared heaters direct line of site radiant heat, like the sun's rays, to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. The decorative black color is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and operates fueled by natural gas. Mounting brackets for a 45° installation are included. It operates with 24V or 120V thermostats (sold separately.) It comes with a 3 year limited warranty on the burner assembly. If an aluminum colored unit is preferred, use the standard 4000 Series Heater and add the optional decorative kit (F104440).

Weight 27
Fuel-type Natural Gas or Propane
Gas-inlet-connection 1/2in ID FPT
Gas-inlet-pressure-min Natural Gas - 6.6in WC / Propane - 11in WC
Gas-inlet-pressure-max Natural Gas - 11in WC / Propane - 14in WC
Ignition Electronic
Electrical-rating 120V / 60Hz
Clearance-to-combustibles-h Top 30in; Side 30in; Back 30in; Below 54in
Mounting-height-range 10ft - 12ft
Thermostat-optional Sold Separately
Venting-required Not Required
Transformer-included Yes
Item-length-in 48.25
Item-width-in 20.5
Item-height-in 13.75
Item-weight-lb 40
Warranty-gas-control 1 Year Limited
Warranty-burner 10 Year Limited Pro-Rated
Model HSRR30SPNG / HSRR30SPLP
