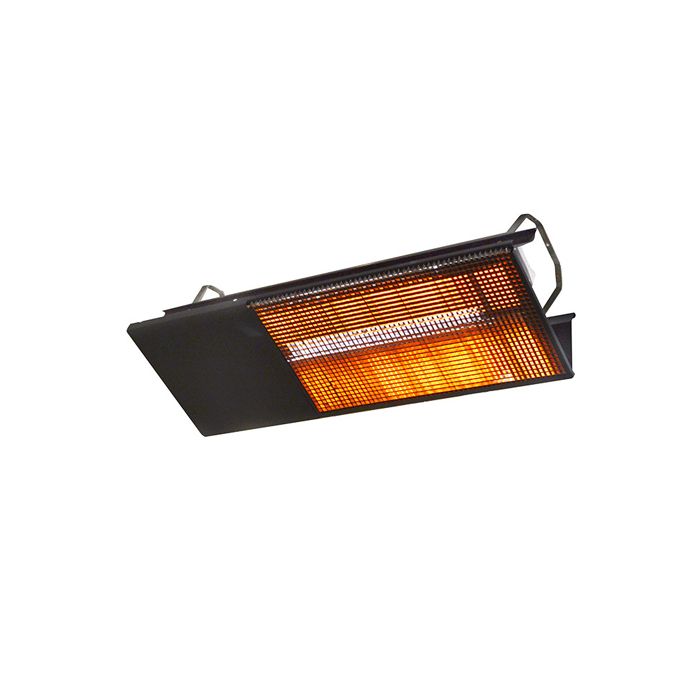

Restaurant / Patio Overhead Radiant Series

Model: HSRR30SPNG / HSRR30SPLP
This black 4000 Series High Intensity Overhead heater is designed for out door restaurant or patio installations where comfortable heat is needed in breezy conditions. Available in natural gas (F140625) or propane (F140627).
Grouped product items
Item #Product Name
F14062530,000 BTU Restaurant/Patio Natural Gas High Intensity Radiant Heater
F14062730,000 BTU Restaurant/Patio Propane High Intensity Radiant Heater
F114581Bracket Hanging Set
1037124 Volt Thermostat
17374Hanging Chain Kit for Overhead High Intensity Heaters
The 4000 Series High Intensity Overhead Restaurant/Patio heater comes fully assembled and painted a low gloss black. It is designed for use on patios, at restaurants and generally where overhead heating is needed in windy and cool conditions. Infrared heaters direct line of site radiant heat, like the sun's rays, to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. The decorative black color is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and operates fueled by natural gas. Mounting brackets for a 45° installation are included. It operates with 24V or 120V thermostats (sold separately.) It comes with a 3 year limited warranty on the burner assembly. If an aluminum colored unit is preferred, use the standard 4000 Series Heater and add the optional decorative kit (F104440).

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Weight27
Fuel TypeNatural Gas or Propane
IgnitionElectronic
Electrical Rating120V / 60Hz
Electrical ConnectionTransformer
Transformer IncludedYes
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure MinNatural Gas - 6.6in WC / Propane - 11in WC
Gas Inlet Pressure MaxNatural Gas - 11in WC / Propane - 14in WC
Mounting Height Range10ft - 12ft
Clearance to Combustibles: HorizontalTop 30in; Side 30in; Back 30in; Below 54in
Venting RequiredNot Required
Thermostat OptionalSold Separately
Item Length (in)48.25
Item Width (in)20.5
Item Height (in)13.75
Item Weight (lb)40
Warranty: Gas Control1 Year Limited
Warranty: Burner10 Year Limited Pro-Rated
ModelHSRR30SPNG / HSRR30SPLP
