100,000 BTU ERXL Single Stage Series
Model: ERXL100-LP / ERXL100-N
.
| Item # | Product Name |
|---|---|

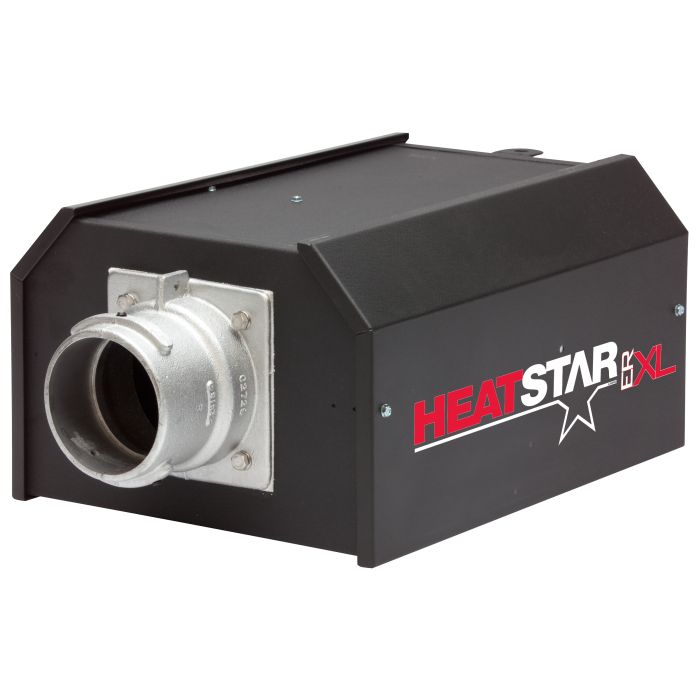

| F102654XL | 100,000 BTU Single Stage Burner Box Control XL-100N |
| F102655XL | 100,000 BTU Single Stage Burner Box Control XL-100LP |
| F106401XL | Tube Set - 100,000 BTU ERXL 100S 30ft |
| F106406XL | Tube Set - 100,000-125,000 BTU 40ft ERXL |
| F111752 | ERXL Installation Kit for 30ft Unit |
| F111753 | ERXL Installation Kit for 40ft Unit |
| 11736 | Conversion Kit 100,000 BTU ERXL LP to NG |
| 11737 | Conversion Kit 100,000 BTU ERXL NG to LP |
Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102654XL) or propane (F102655XL), 30 ft or (F106401XL) 40 ft (F106406XL) tube set sold separately.
- 10 Year Limited Warranty
- 16-Gauge Aluminized Tubing
- Outside or Inside Air for Combustion
- Sealed Burner Control Box
- Full Cover Polished Aluminum Reflector
- Installs easily as Straight or U-Tube Configuration
- Category I Vertical Venting
- Category III Horizontal Venting
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Electrical Rating | 120V |
|---|---|
| Electrical Connection | Pigtail Leads in Junction Box |
| Gas Inlet Connection | 1/2in ID FPT |
| Mounting Height Range | 12ft - 15ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 74in; Sides 36in |
| Venting: Length Min/Max | 25ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25ft |
| Thermostat Optional | Optional |
| Fuel Type | Natural Gas or Propane |
| Ignition | Hot Surface |
| Warranty | 10 Year Limited |
| Certification | CSA |
| Model | ERXL100-LP / ERXL100-N |
