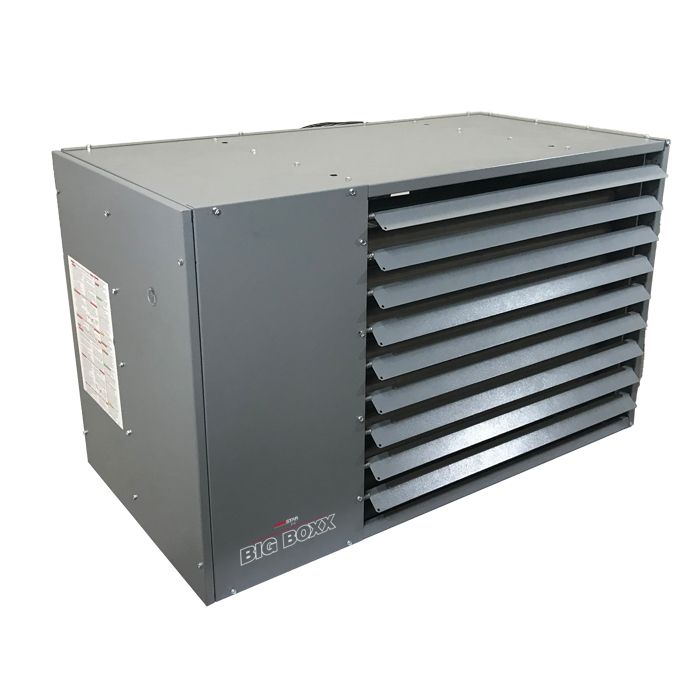

200,000 BTU Separated Combustion Aluminized Steel Heat Exchanger Unit Heater Series
Model: HSU200NGPAL
The HeatStar 200,000 BTU Separated Combustion Unit Heater gives efficient heat up to 6,700 sq ft. Good for use in humid or corrosive environments.
The HeatStar 200,000 BTU Separated Combustion Unit Heater is your heat solution for factory or farm. The unit heater provides 200,000 BTU of efficient heat to cover areas up to 6,700 sq ft. Using fresh air from outside the building, the heater can be used in humid or corrosive areas, giving you an option for greenhouses or chemical factories. It can also be installed in a standard combustion configuration for versatility. The air louvers have three locking positions to direct heat where it is needed. Keep your workplace warm with the HeatStar 200,000 BTU Separated Combustion Unit Heater.
- Separated combustion units
- Powder coated cabinet
- 82% thermal efficiency
- Air louvers with 3 locking positions
- All models ship equipped for natural gas (LP conversion kit sold separately)
- Easily installs using 3/8-in -16 threaded rods (sold separately)
- 3 Year Limited Warranty on parts
- (Limited to 1 year in high humidity or caustic environments)
- 10 Year Limited Warranty on aluminized steel heat exchanger
- (Limited to 5 years when installed in corrosive environments)
- 10 Year Limited Warranty on stainless steel heat exchanger
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Download Prop 65 Statement
| Input BTU | 200,000 |
|---|---|
| Output BTU | 164,000 |
| Heating Area (Sq Ft) | 6,700 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 6in; Behind 18in; Sides 6in |
| Venting: Exhaust | 4in Diameter |
| Heat Exchanger | Aluminized Steel Tubing |
| Thermostat Optional | N/A |
| Fuel Type | Natural Gas (LP Conversion Kit Available) |
| Ignition | Electronic |
| Item Length (in) | 35 |
| Item Width (in) | 40.5 |
| Item Height (in) | 26.3 |
| Item Weight (lb) | 212 |
| Warranty | 10 year limited on aluminized steel heat exchanger (5 year when installed in corrosive environments) |
| Model | HSU200NGPAL |
Click on the link below to download Specifier documentation and submit here. Please check the download size before downloading on your mobile.
