30,000 BTU Restaurant/Patio Propane High Intensity Radiant Heater
SKU
F140627
Model: HSRR30SPLP

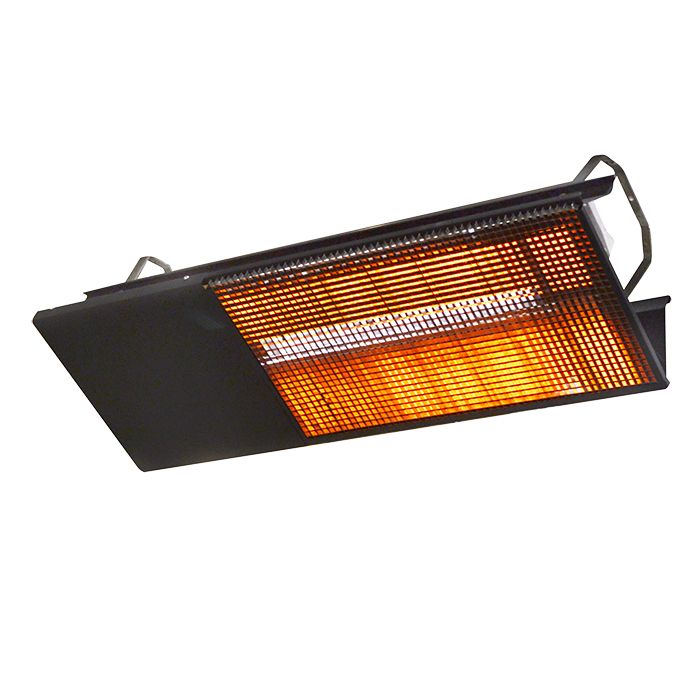

This black 4000 Series High Intensity Overhead heater is designed for out door restaurant or patio installations where comfortable heat is needed in breezy conditions. LP version.
- Additional burner orifice is available that enables the installer to increase or decrease the output of the heater (optional orifice #05443, sold separately)
- Spark ignition heaters ship with 120V 24V /40VA transformers
- Mounts horizontal or at a 45 degree angle (brackets included)
- Operates with 24V or 120V thermostats (not included)
- No direct venting required
- Corrosion resistant materials are used throughout heaters construction
Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 27 |
|---|---|
| Fuel Type | Propane |
| Ignition | Electronic |
| Electrical Rating | 120V / 60Hz |
| Electrical Connection | Transformer |
| Transformer Included | Yes |
| Gas Inlet Connection | 1/2in ID FPT |
| Gas Inlet Pressure Min | 11in WC |
| Gas Inlet Pressure Max | 14in WC |
| Mounting Height Range | 10ft - 12ft |
| Clearance to Combustibles: Horizontal | Top 30in; Side 30in; Back 30in; Below 54in |
| Venting Required | Not Required |
| Thermostat Optional | Yes |
| Item Length (in) | 48.25 |
| Item Width (in) | 20.5 |
| Item Height (in) | 13.25 |
| Item Weight (lb) | 40 |
| Warranty: Gas Control | 1 Year Limited |
| Warranty: Burner | 10 Year Limited Pro-Rated |
| Model | HSRR30SPLP |
