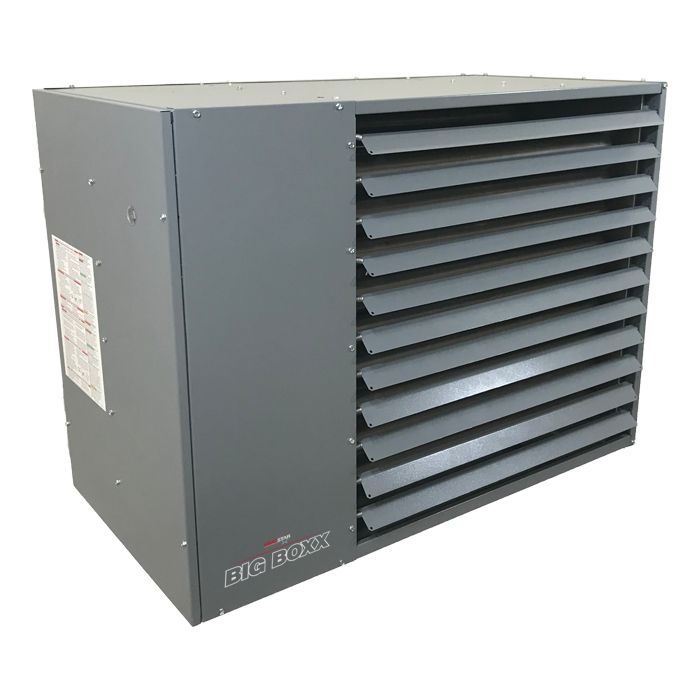

300,000 BTU Separated Combustion Stainless Steel Heat Exchanger Unit Heater Series

Model: HSU300NGPSS

The HeatStar 300,000 BTU Separated Combustion Unit Heater gives efficient heat up to 10,000 sq ft. Good for use in humid or corrosive environments.

Grouped product items
Item #Product Name
F163035300,000 BTU Separated Combustion Stainless Steel Heat Exchanger Unit Heater
F163073Unit/Utility Heater Fuel Conversion Kit - NG to LP 300K/400K BTU
F102863Category III 6in Horizontal Vent Kit
F102864Category I 6in Vertical Vent Kit

The HeatStar 300,000 BTU Separated Combustion Unit Heater is your heat solution for factory or farm. The unit heater provides 300,000 BTU of efficient heat to cover areas up to 10,000 BTU sq ft. Using fresh air from outside the building, the heater can be used in humid or corrosive areas, giving you an option for greenhouses or chemical factories. It can also be installed in a standard combustion configuration for versatility. A stainless steel heat exchanger gives more protection in humid atmospheres. The air louvers have three locking positions to direct heat where it is needed. Keep your workplace warm with the HeatStar 300,000 BTU Separated Combustion Unit Heater.

  • Separated combustion units
  • Powder coated cabinet
  • 82% thermal efficiency
  • Air louvers with 3 locking positions
  • All models ship equipped for natural gas (LP conversion kit sold separately)
  • Easily installs using 3/8-in -16 threaded rods (sold separately)
  • 3 Year Limited Warranty on parts
  • (Limited to 1 year in high humidity or caustic environments)
  • 10 Year Limited Warranty on aluminized steel heat exchanger
  • (Limited to 5 years when installed in corrosive environments)
  • 10 Year Limited Warranty on stainless steel heat exchanger

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

Download Prop 65 Statement

More Information
Input BTU300,000
Output BTU246,000
Heating Area (Sq Ft)10,000
Electrical Rating110 vac
Gas Inlet Connection1/2in
Gas Inlet Pressure Min3.5in WC
Gas Inlet Pressure Max14in WC
Clearance to Combustibles: HorizontalAbove 6in; Behind 18in; Sides 6in
Venting: Exhaust6in Diameter
Heat ExchangerStainless Steel Tubing
Thermostat OptionalN/A
Fuel TypeNatural Gas (LP Conversion Kit Available)
IgnitionElectronic
Item Length (in)35.8
Item Width (in)40.5
Item Height (in)31.8
Item Weight (lb)264
Warranty10 year limited on stainless steel heat exchanger (only applies to Tectoral units)
ModelHSU300NGPSS
