60,000,100,000 ER2STG Two Stage Series

  • 60,000,100,000 ER2STG Two Stage Series

60,000,100,000 ER2STG Two Stage Series

Item #:ER2STG100_Two_Stage_Series Model #: ER2STG100-N / ER2STG100-LP
Item # Product Name

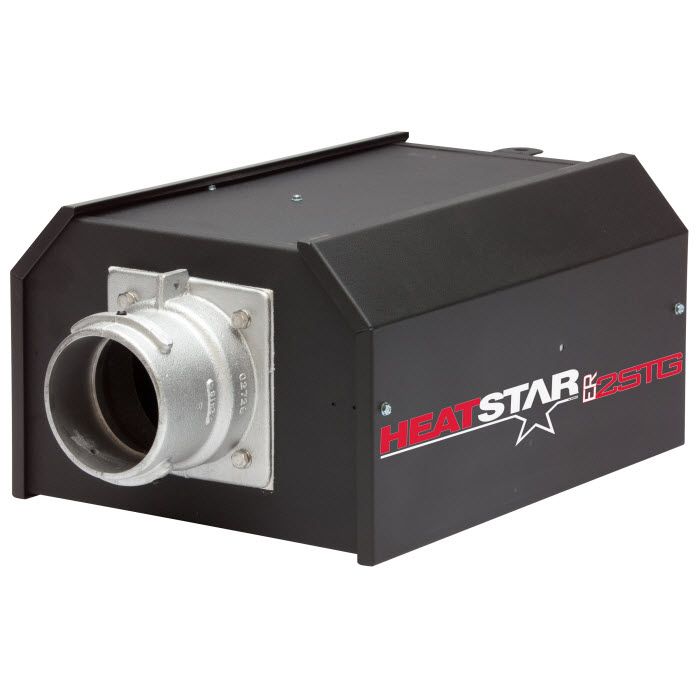

F102600 60,000-100,000 BTU Two Stage Burner Box Control ER2STG60-100N
F102602 60,000-100,000 BTU Two Stage Burner Box Control ER2STG60-100LP
F106401XL Tube Set - 100,000 BTU ERXL 100S 30ft
F102603 Installation kit for 30' unit (ER2STG100)
11749 Conversion Kit 100,000 BTU ER2STG NG to LP
.

description

Details

Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102600) or propane (F102602), 30 ft tube set (F106401XL) sold separately.
  • 10 Year Limited Warranty
  • 16-Gauge Aluminized Tubing
  • Outside or Inside Air for Combustion
  • Sealed Burner Control Box
  • Full Cover Polished Aluminum Reflector
  • Installs easily as Straight or U-Tube Configuration
  • Category I Vertical Venting
  • Category III Horizontal Venting

product details

Additional Information

BTU per Hour 100000
Electrical Rating 120V
Electrical Connection Pigtail Leads in Junction Box
Gas Inlet Connection 1/2in ID FPT
Mounting Height Range 12ft - 15ft
Clearance to Combustibles: Horizontal Above 6in; Below 74in; Sides 36in
Clearance to Combustibles: Vertical
Venting: Length Min/Max 25ft
Venting: Exhaust 30ft
Venting: Air Intake 30ft
Thermostat Optional Optional
Fuel Type Natural Gas or Propane
Ignition Hot Surface
Weight (Lbs)
Warranty 1 Year Limited
Certification CSA
Model ER2STG100-N / ER2STG100-LP

Parts and Manuals

Product Downloads

This product does not have schematics at this time.
