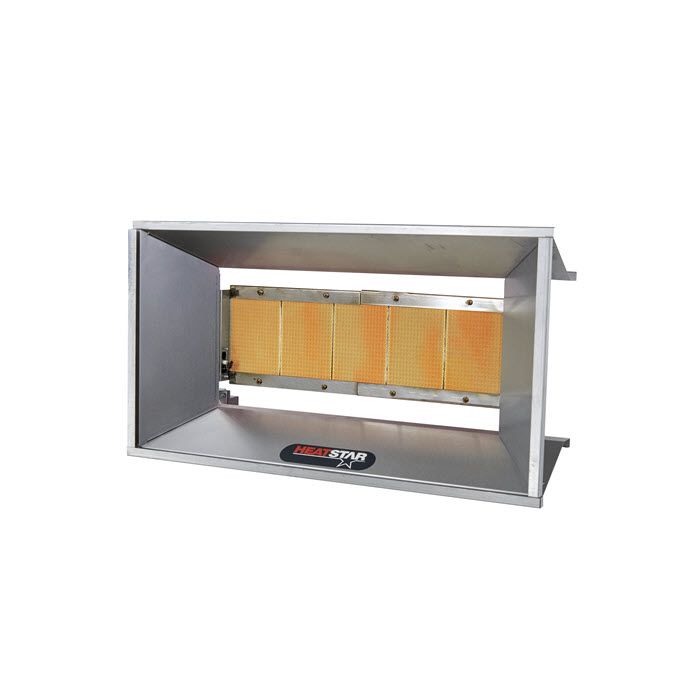

High Intensity Overhead Radiant Spark Ignition 4000 Series

Model: HS4040SPNG / HS4040SPLP
4000 Series High Intensity Overhead Radiant Heater, spark ignition for natural gas (F140629) or propane (F140731).
Grouped product items
Item #Product Name
F14062940,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater
F14073140,000 BTU Propane High Intensity Radiant Auto-Spark Industrial Heater
F1044404000 Series Decorative Grid Kit
F1044414000 Series Retro-Fit Decorative Grid Kit
F114581Bracket Hanging Set
17374Hanging Chain Kit for Overhead High Intensity Heaters
1037124 Volt Thermostat
4000 Series Heaters arrive set up to operate at 40,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 30,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transfomer. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Weight25
Fuel TypeNatural Gas or Propane
IgnitionElectronic
Electrical Rating120V / 60Hz
Electrical ConnectionTransformer
Transformer IncludedYes
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure MinNatural Gas - 6.8in WC / Propane - 11in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range10ft - 12ft
Clearance to Combustibles: HorizontalTop 34in; Side 30in; Back 30in; Below 68in
Venting RequiredNot Required
Thermostat OptionalSold Separately
Item Length (in)35.25
Item Width (in)20.75
Item Height (in)12.25
Item Weight (lb)27.04
Warranty: Gas Control1 Year Limited
Warranty: Burner10 Year Limited Pro-Rated
ModelHS4040SPNG / HS4040SPLP
