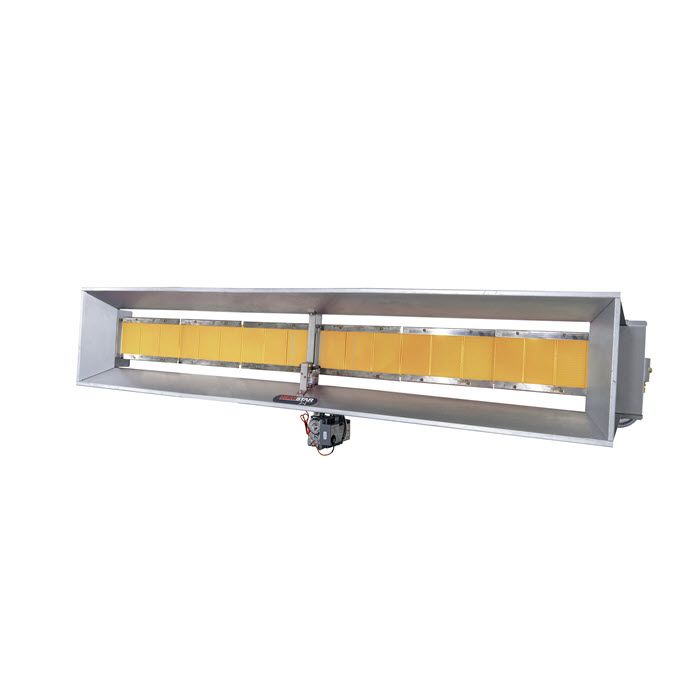

High Intensity Overhead Radiant Spark Ignition 9120 Series
Model: HS9120SPNG / HS9120SPLP
9120 Series High Intensity Overhead Radiant Heater, spark ignition for natural gas (F190630) or liquid propane (F190731)
| Item # | Product Name |
|---|---|
| F190630 | 120,000 BTU Natural Gas High Intensity Radiant Auto-Spark Industrial Heater |
| F190731 | 120,000 BTU Propane High Intensity Radiant Auto-Spark Industrial Heater |
| F114581 | Bracket Hanging Set |
| 17374 | Hanging Chain Kit for Overhead High Intensity Heaters |
| 10371 | 24 Volt Thermostat |
9120 Series Heaters arrive set up to operate at 120,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 100,000 or 140,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transfomer. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
- Heatstar High Intensity Heaters have multiple outputs per model series
- Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
- Spark ignition heaters ship with 40VA transformers
- Milivolt control heaters shipped with thermostat
- Non-corrosive materials are used throughout heaters construction
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 61 |
|---|---|
| Fuel Type | Natural Gas or Propane |
| Electrical Rating | Not Applicable |
| Electrical Connection | Not Applicable |
| Transformer Included | Not Applicable |
| Gas Inlet Connection | 1/2in ID FPT |
| Gas Inlet Pressure Min | 7in WC |
| Gas Inlet Pressure Max | 14in WC |
| Mounting Height Range | 18ft plus |
| Clearance to Combustibles: Horizontal | Top 46in; Side 46in; Back 46in; Below 114in |
| Venting Required | Not Required |
| Thermostat Optional | Sold Separately |
| Item Length (in) | 85.5 |
| Item Width (in) | 26.75 |
| Item Height (in) | 13.125 |
| Item Weight (lb) | 68 |
| Warranty: Gas Control | 1 Year Limited |
| Warranty: Burner | 10 Year Limited Pro-Rated |
| Model | HS9120SPNG / HS9120SPLP |
