45,000 BTU Garage Shop Patio Tube Heaters
Model: HS45GSP
The HS45GSP Tube Heaters come with a burner and a tube set in each box. Optional accessories and a installation kits are available. The heater comes either Natural Gas (F102857) or Propane (F102855).
| Item # | Product Name |
|---|---|
| F102857 | HS45GSP-NG Tube Heater |
| F102855 | HS45GSP-LP Tube Heaters |
| F102834 | Install Kit (T-stat, shut-off valve, flex connector, 1/2" nipple) |
| F102859 | Decorative Grid Kit |
| F102848 | Category I 4in Vertical Vent Kit |
| F102860 | Category III 4in Stainless Steel Horizontal Vent Kit |
| 10371 | 24 Volt Thermostat |

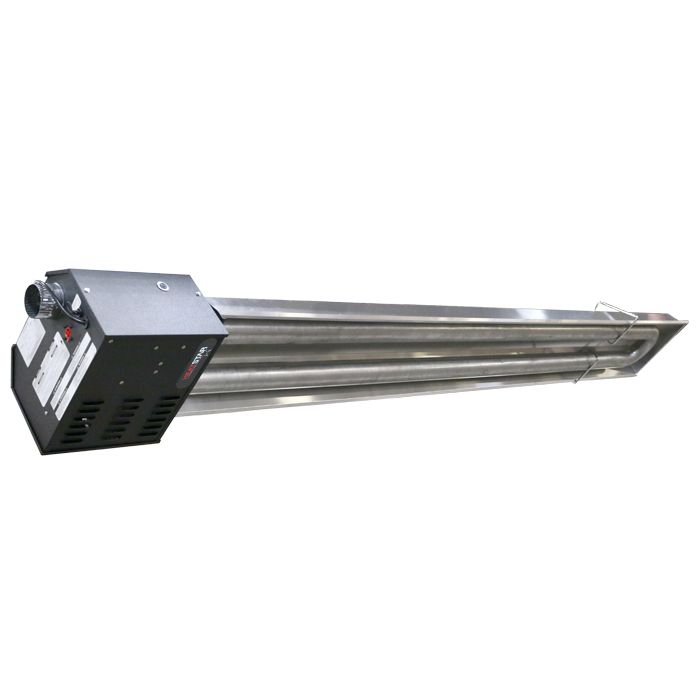

The HS45GSP Tube Heater is a source for efficient and effective low-intensity infrared radiant heat. At 45,000 BTU, it provides uniform heat distribution while operating quietly. The compact 3in aluminized steel U-tube design along with the polished deep-dish reflector is perfect for all garges, shops and patios. The burner and tube set come in one box. Optional accessories include a horizontal vent kit, a vertical vent kit, a 24v thermostat, a decorative grid kit, and an install kit.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Electrical Rating | 120 vac, 60 Hz, single phase, 1 amp |
|---|---|
| Electrical Connection | 3 Pin Moulded Plug |
| Gas Inlet Connection | 1/2in Female NPT |
| Mounting Height Range | 8-14ft |
| Clearance to Combustibles: Horizontal | 6in above, 54in below, 24in burner side, 24in exhaust side, 6in reflector end, 24in burner end |
| Clearance to Combustibles: Vertical | (Hung Burner Side Up) - 6in above, 36in below, 36in burner side, 6in exhaust side, 6in reflector end, 24in burner end |
| Venting: Length Min/Max | 3-25ft |
| Venting: Exhaust | 4in Diameter |
| Venting: Air Intake | 3in diamater |
| Thermostat Optional | 10371 - Analog |
| Fuel Type | Natural Gas or Propane |
| Weight | 91 |
| Warranty | 3 Year Limited on Parts & Burner, 10 Year on Tube |
| Certification | CSA |
| Model | HS45GSP |
Download Prop 65 Statement
