HSP500ID-A: Indirect Fired Construction Heater

  • HSP500ID-A: Indirect Fired Construction Heater

Videos

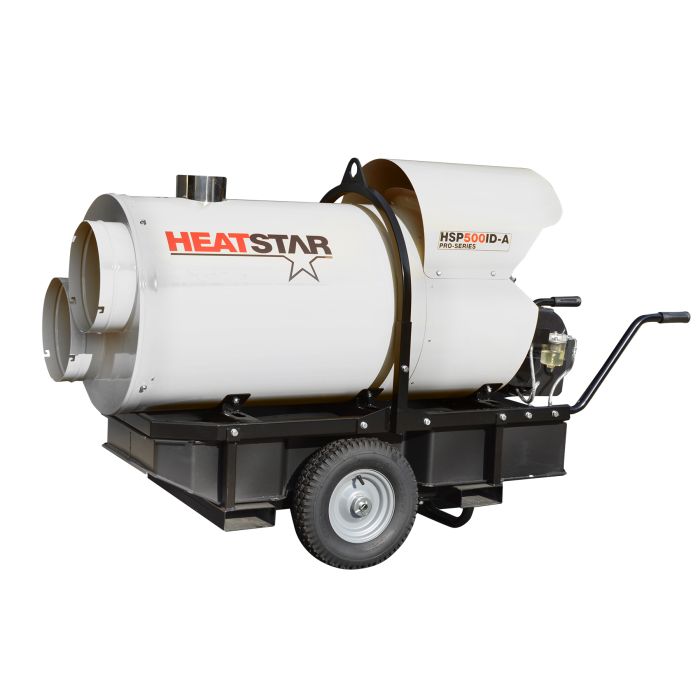

HSP500ID-A: Indirect Fired Construction Heater

Item #:F105125 Model #: HSP500ID-A
The HSP500ID-A Indirect Fired Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.

description

Details

Heatstar PRO-SERIES 400,000 BTU/HR Indirect Fired Heater. The HSP500ID-A is an ideal heating solution for any large Industrial or rental application. Unit ships with factory installed dual 12" duct adapters. When paired with up to 100 ft of Heatstar high quality high temperature ducting, this indirect fired heater is an ideal heating system for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the unit outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way it is hard to beat the comfort and safety of indirect heat.
  • Heavy duty frame
  • Lift bracket
  • Heat exchanger to keep exhaust gas and heated air separate
  • 46 gallon tank capacity
  • Powerful fans ensure high static pressure
  • Long life stainless steel combustion chamber
  • Electronic flame control
  • Water resistant flame control box
  • Automatic safety and control devices
  • Optional thermostat available for constant temperature control
  • Durable powder coated finish
  • Heavy duty duct adapter available
  • UL Certified

product details

Additional Information

Weight (Lbs) 484
BTU per Hour 400000
Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel
Tank Capacity (Gal) 46
Ignition Continuous
Electrical Rating 120v, 60 HZ, 13 Amp
Air Volume (CFM) 4032
Heated Fuel Filter Standard
Heated Nozzle No
Clearance to Combustibles: Horizontal 6 ft
Adapter F105126 Single (16") / Standard Dual 12" Attached
Recirculating Ducting F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp
Duct Length Max 100 ft
Duct Diameter Standard Dual (12in) or Single F105126 (16in)
Multiple Ducting Optional F150040 12in x 25ft / F150050 16in x 25ft
Wheel Type Pneumatic
Thermostat Optional F105108 Analog (33') / F105106 Digital (33')
Carton Length (in) 64
Carton Width (in) 27
Carton Height (in) 60
Carton Weight (in) 573
Warranty 1 Year Limited
Model HSP500ID-A

Parts and Manuals

Product Downloads

This product does not have schematics at this time.
